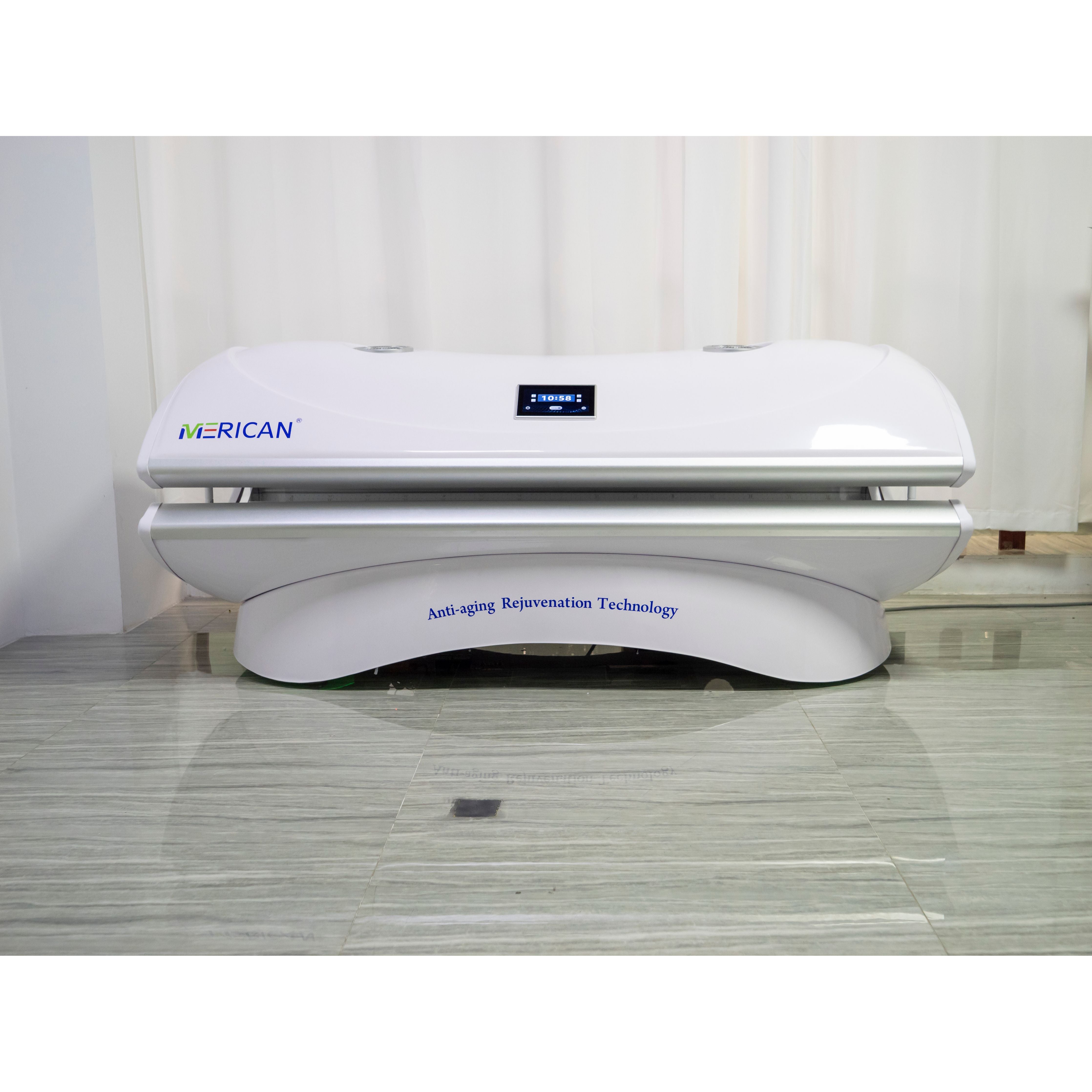

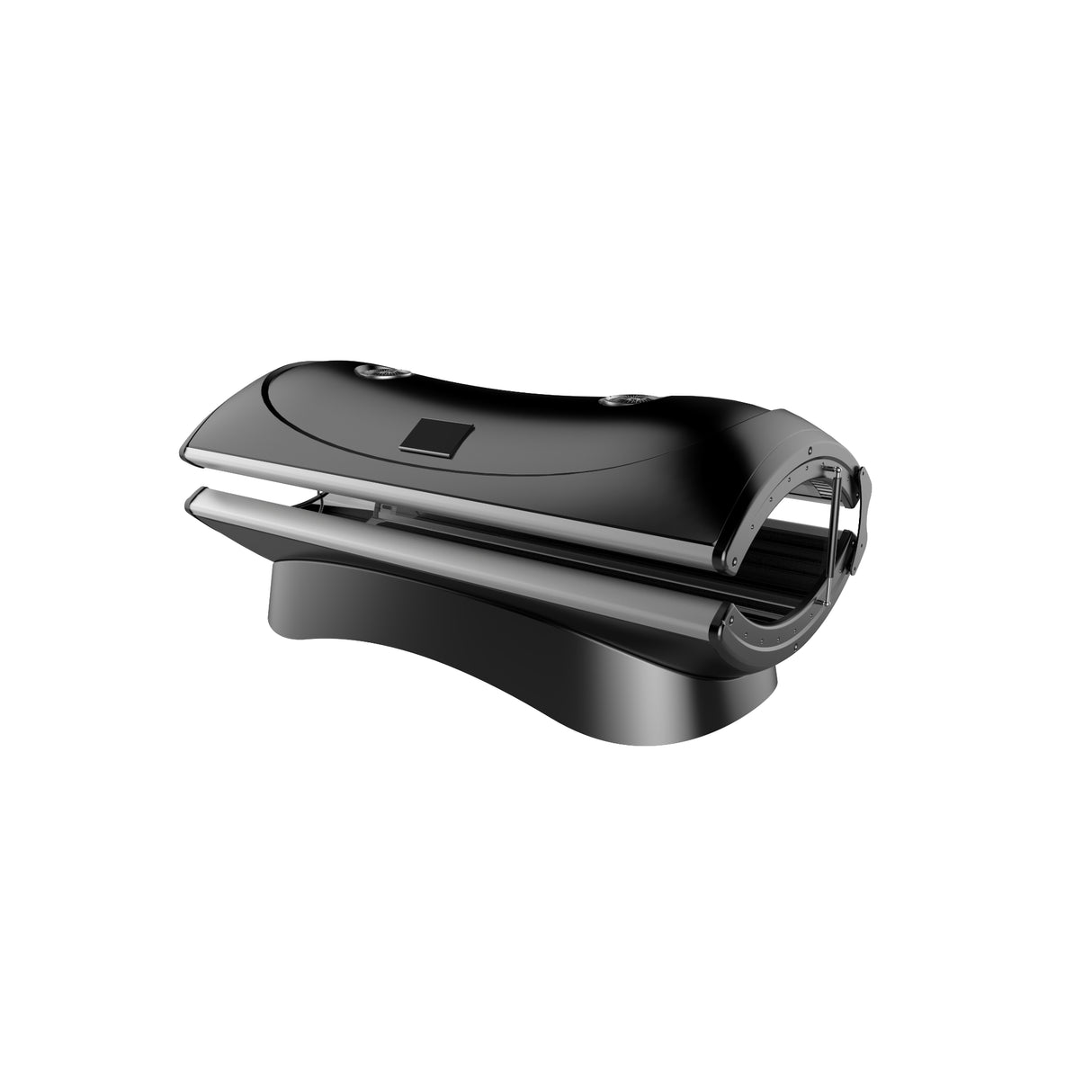

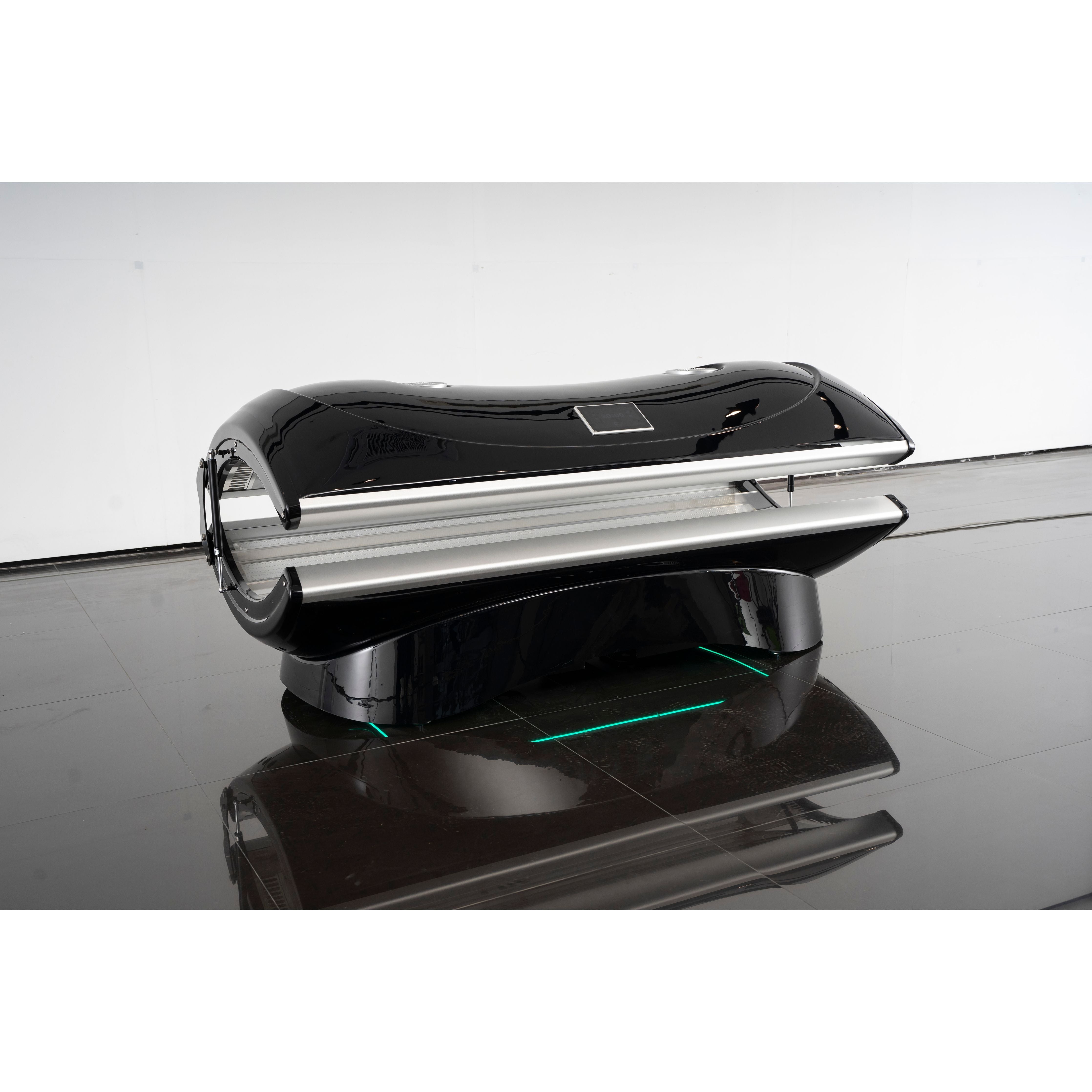

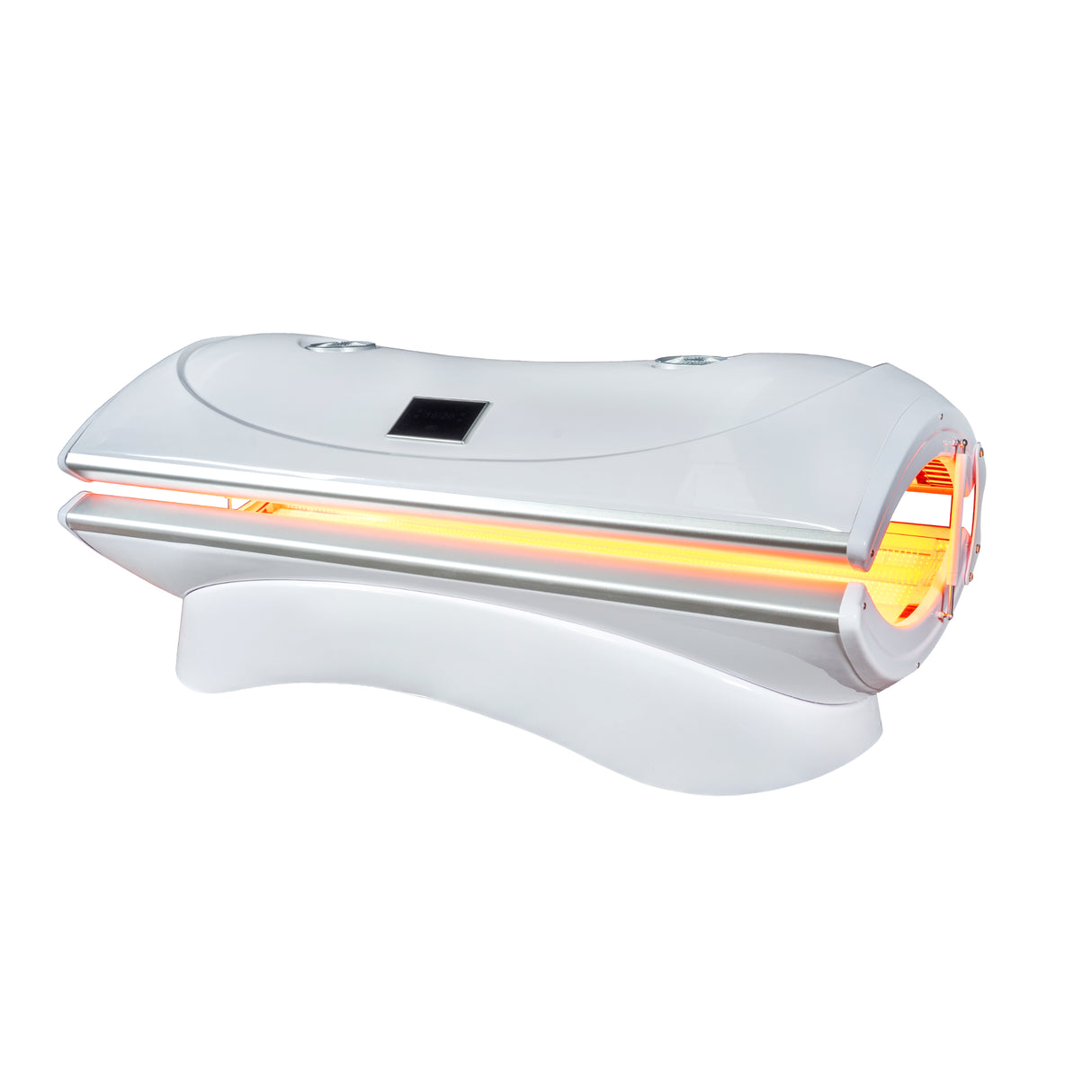

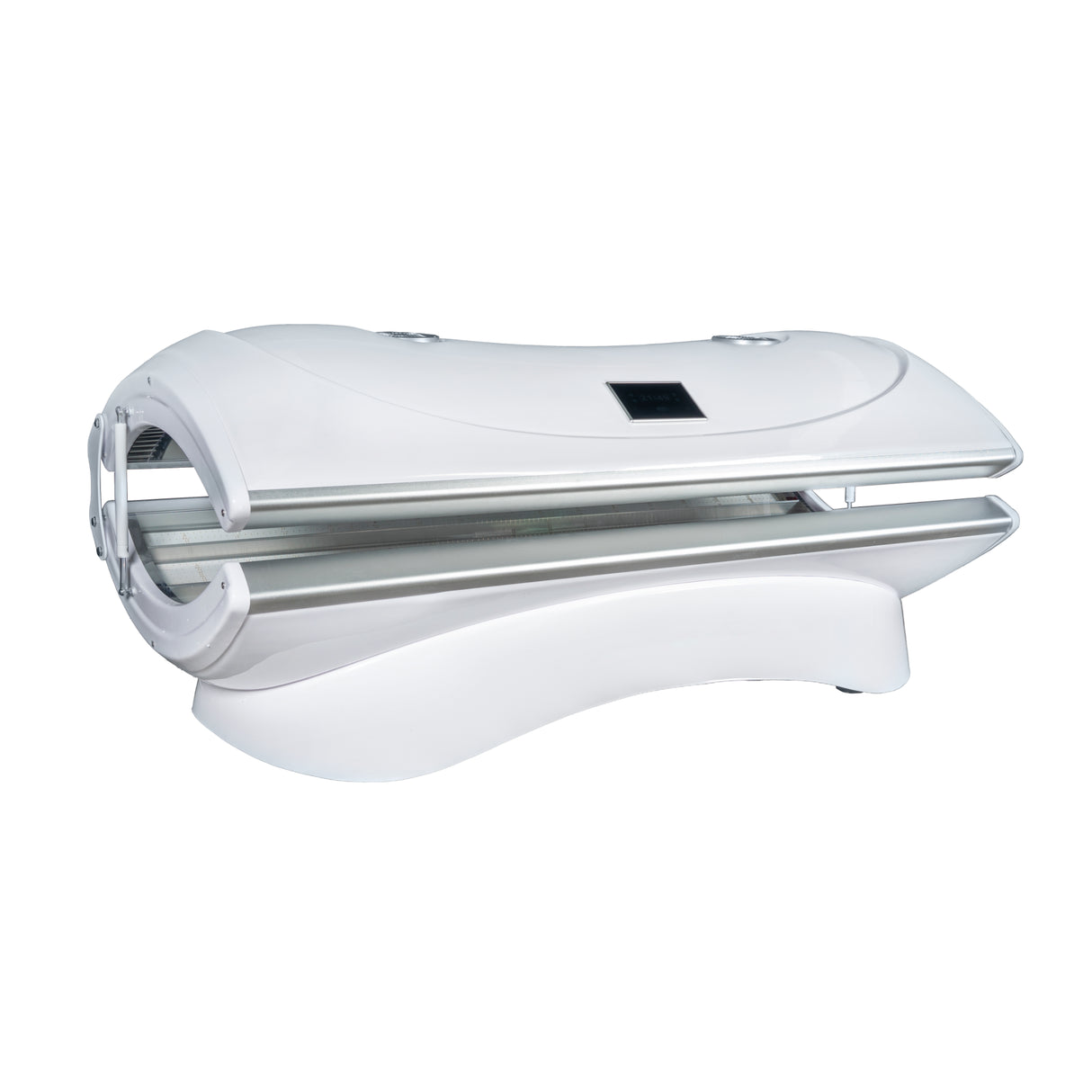

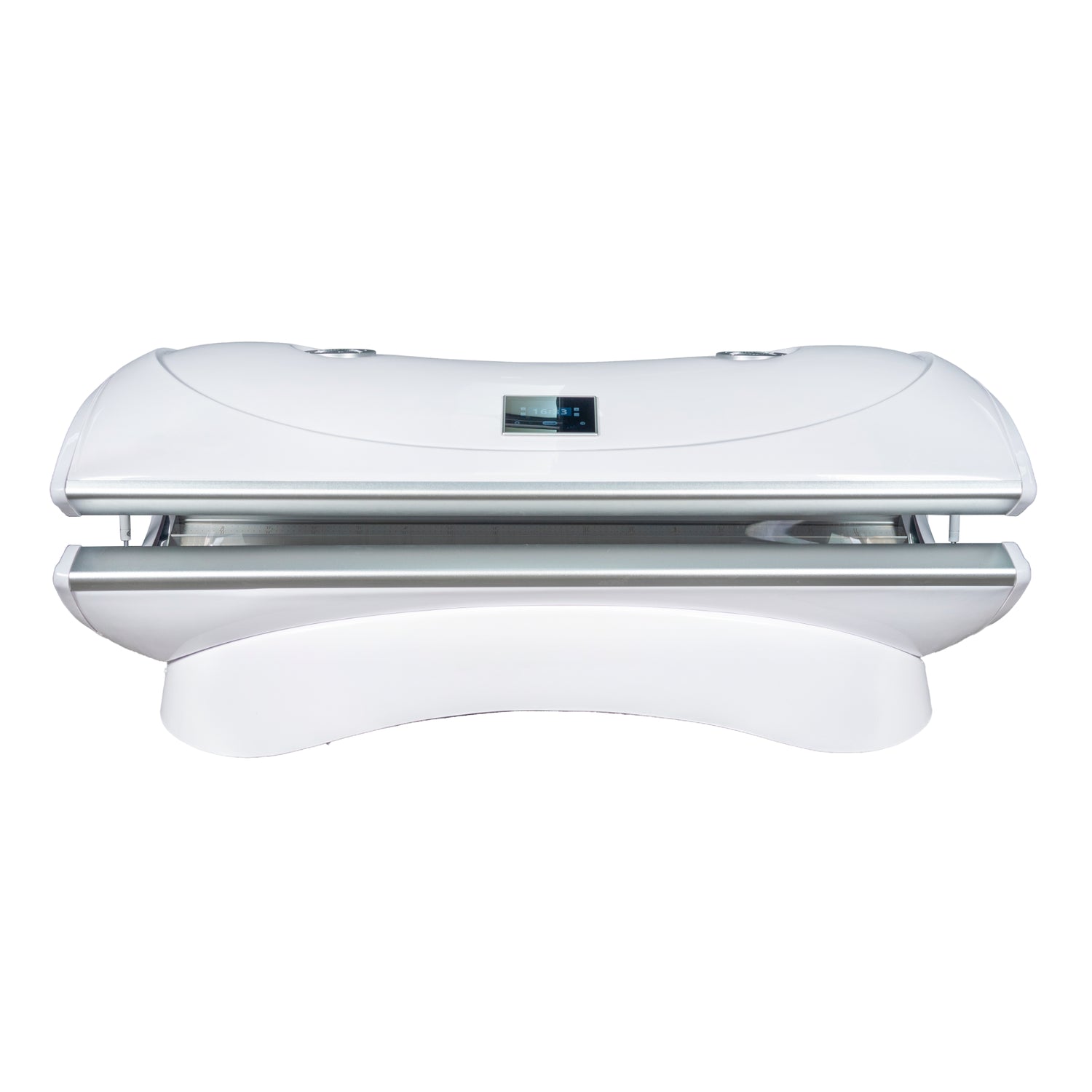

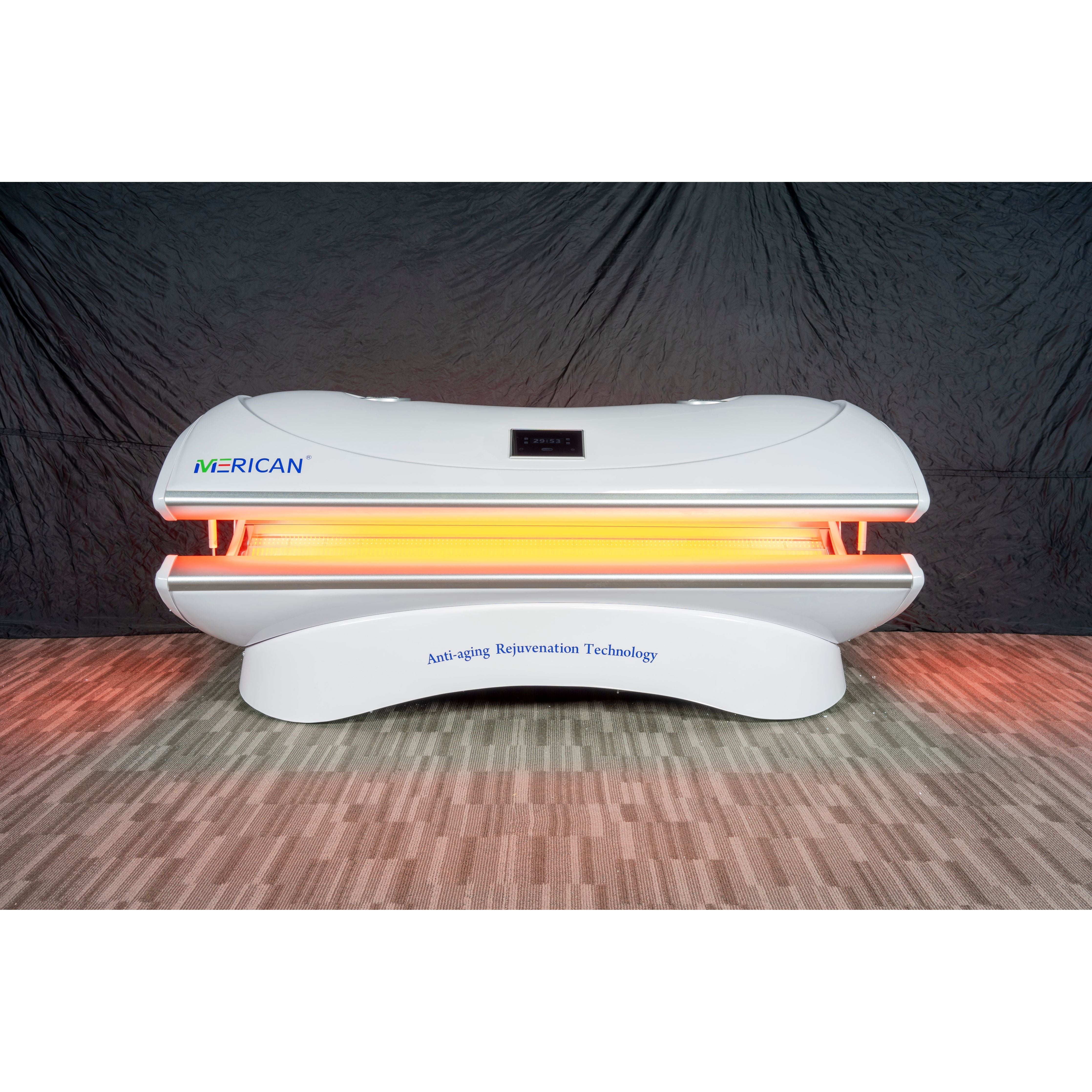

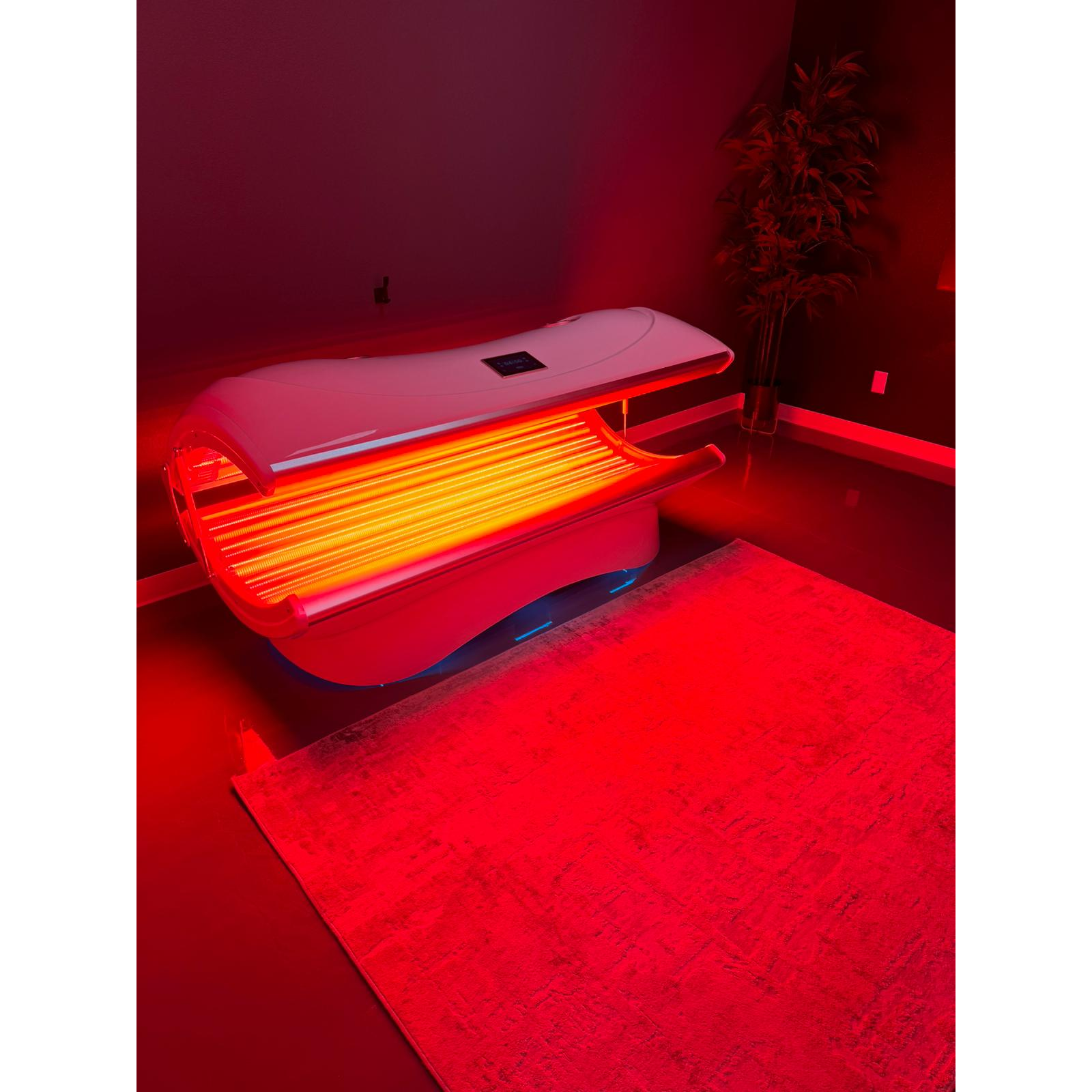

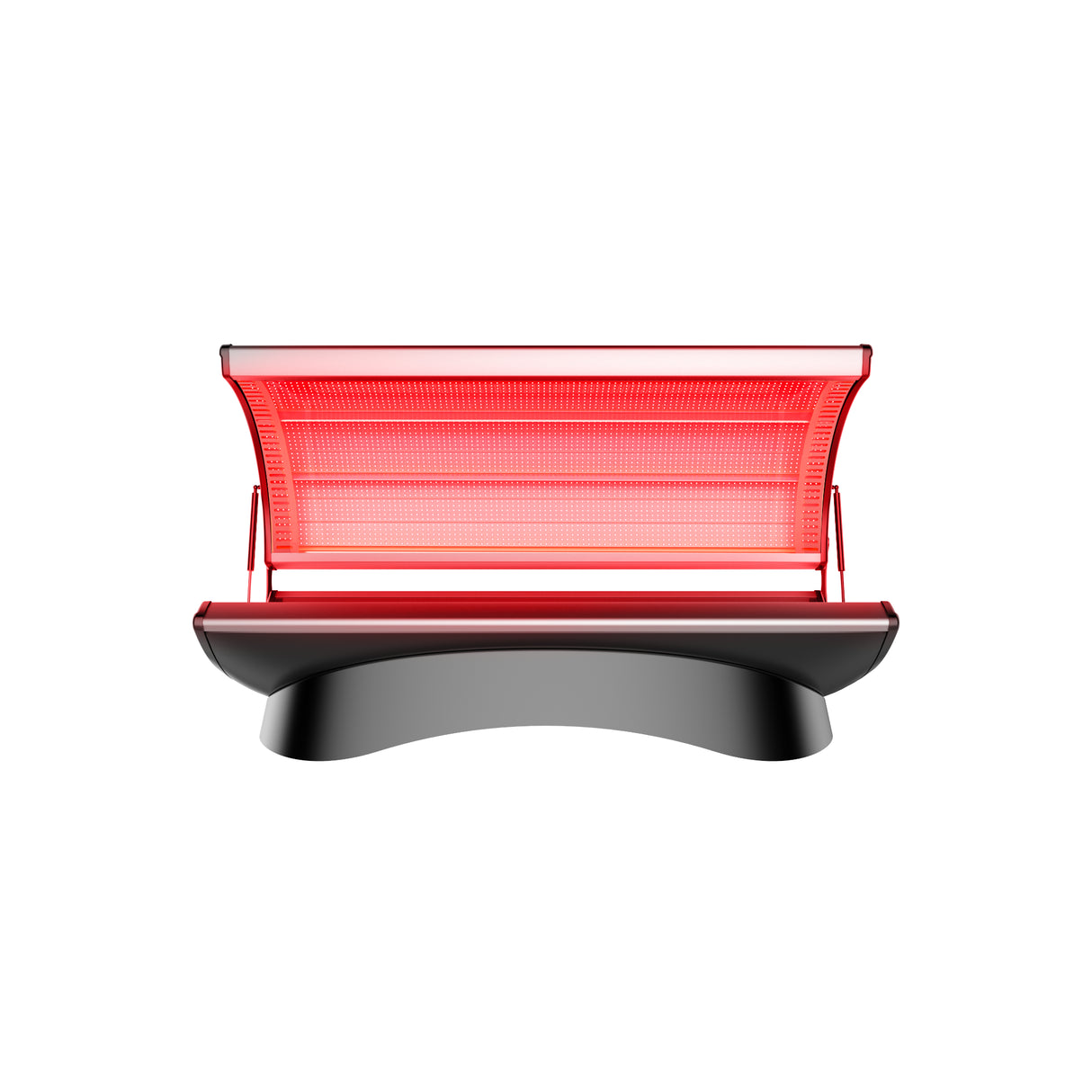

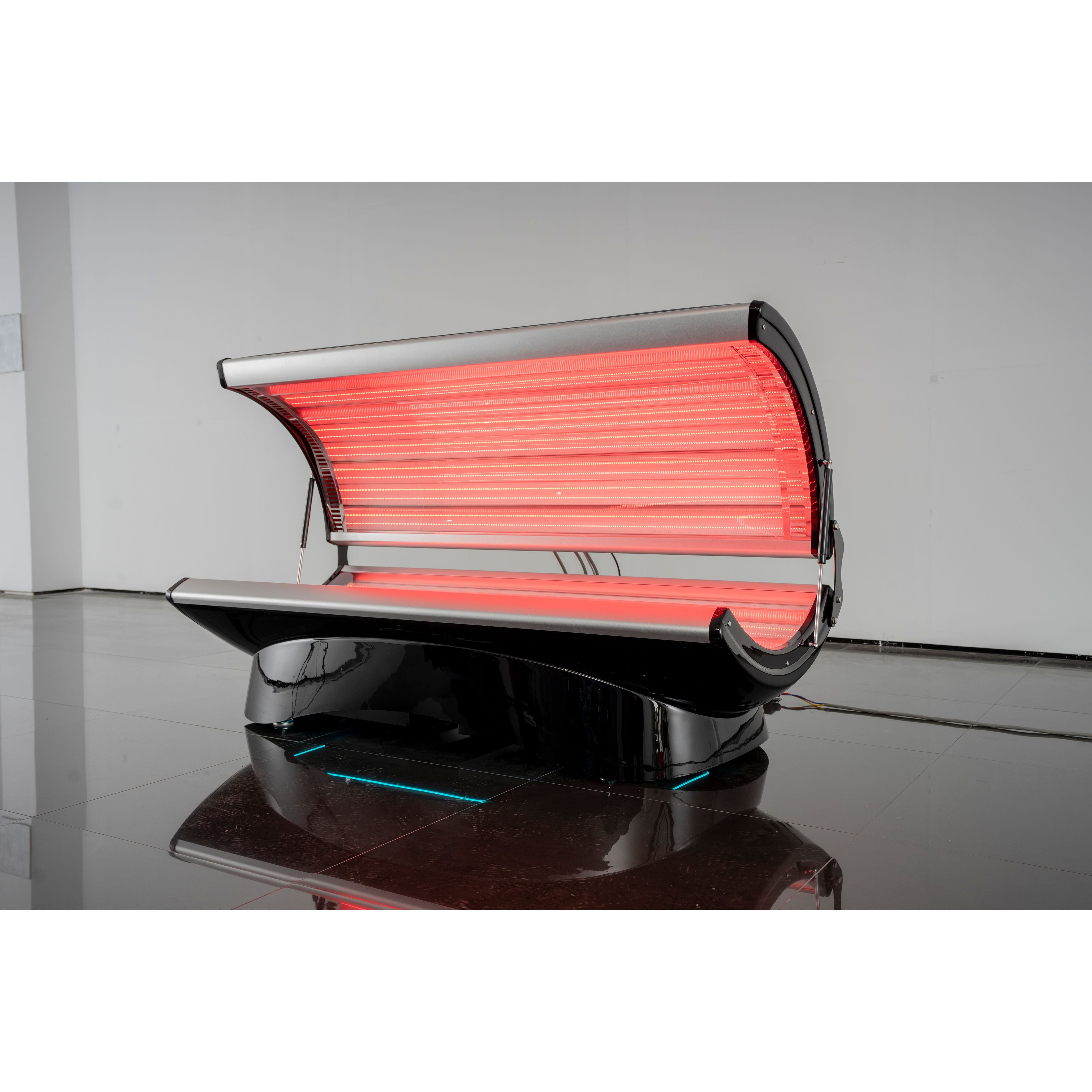

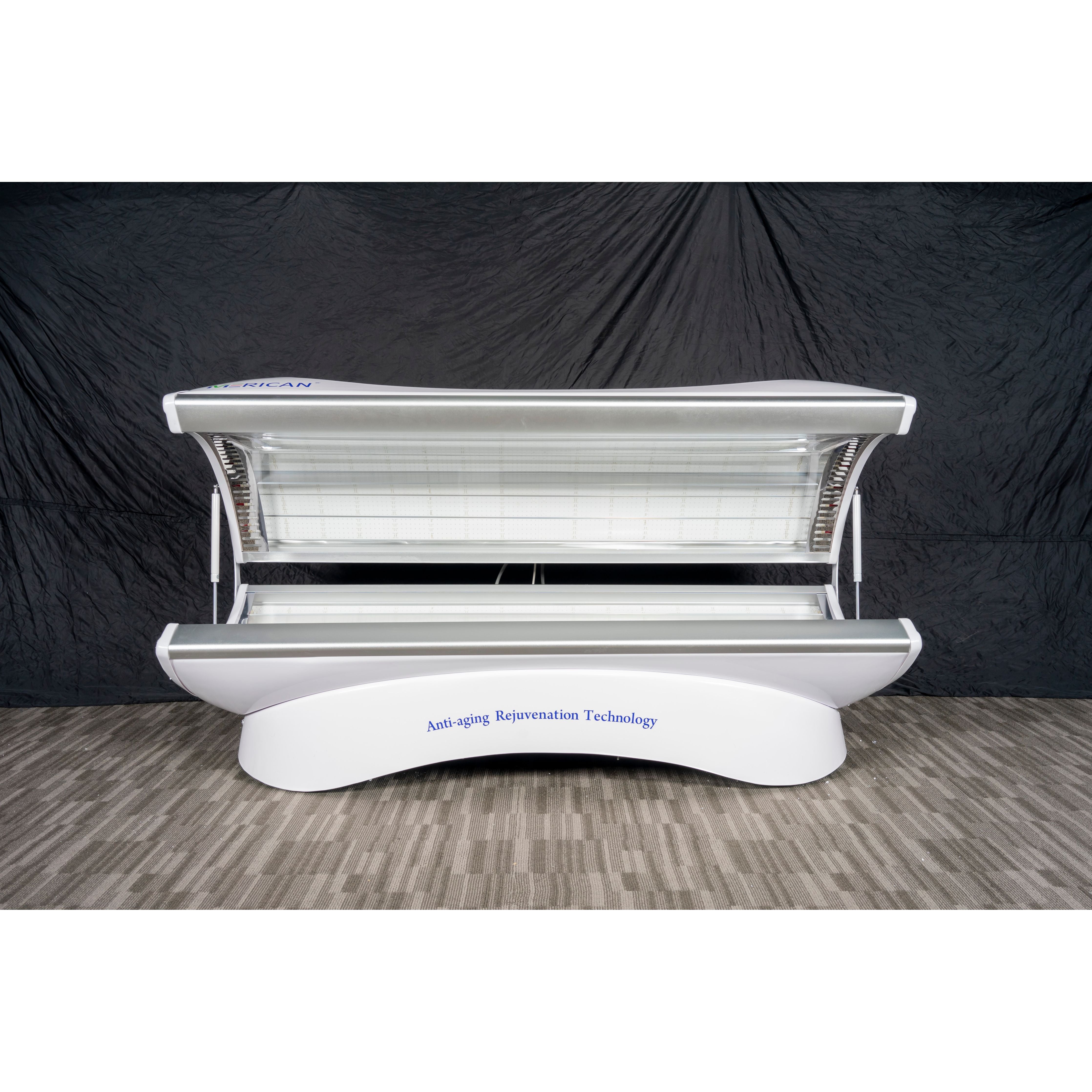

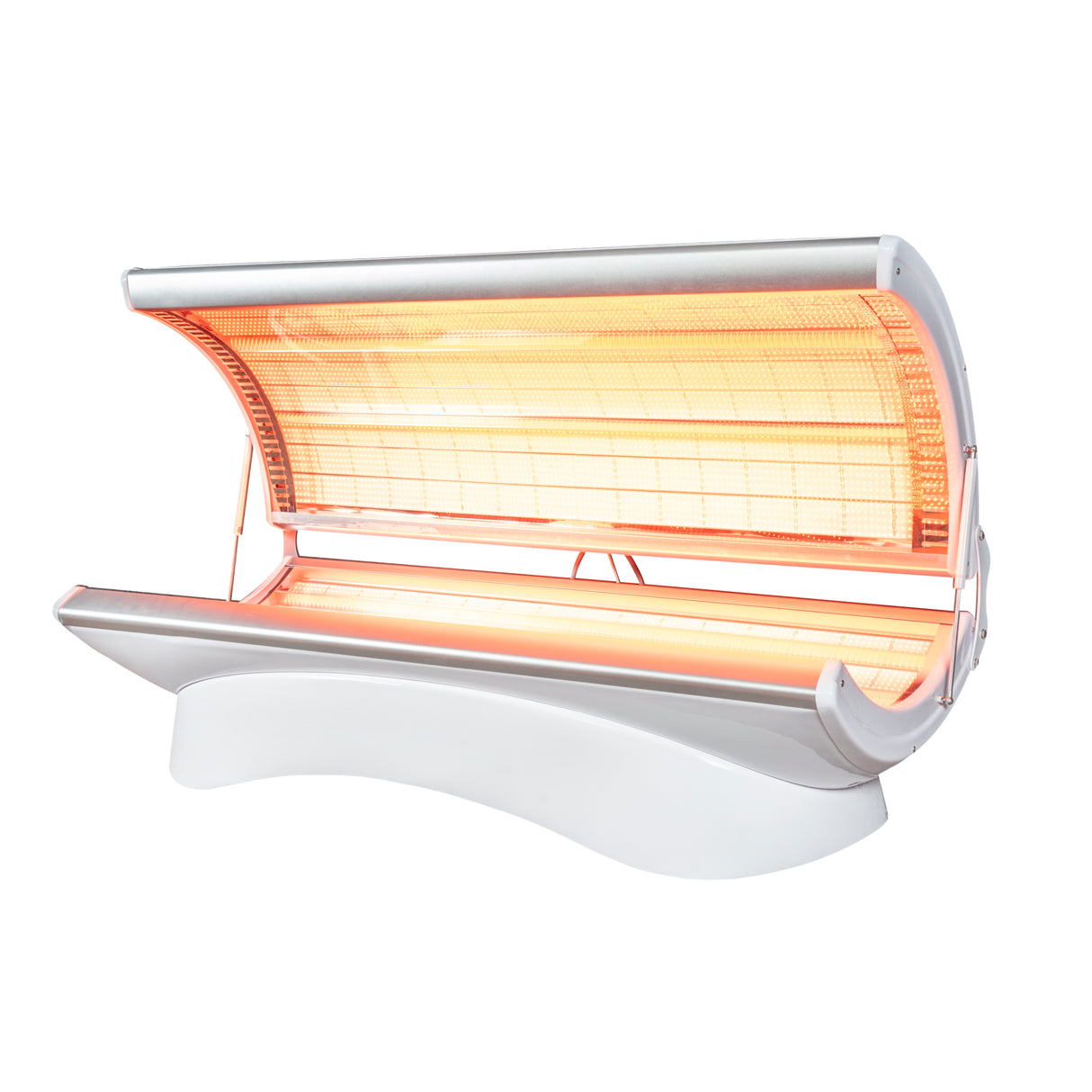

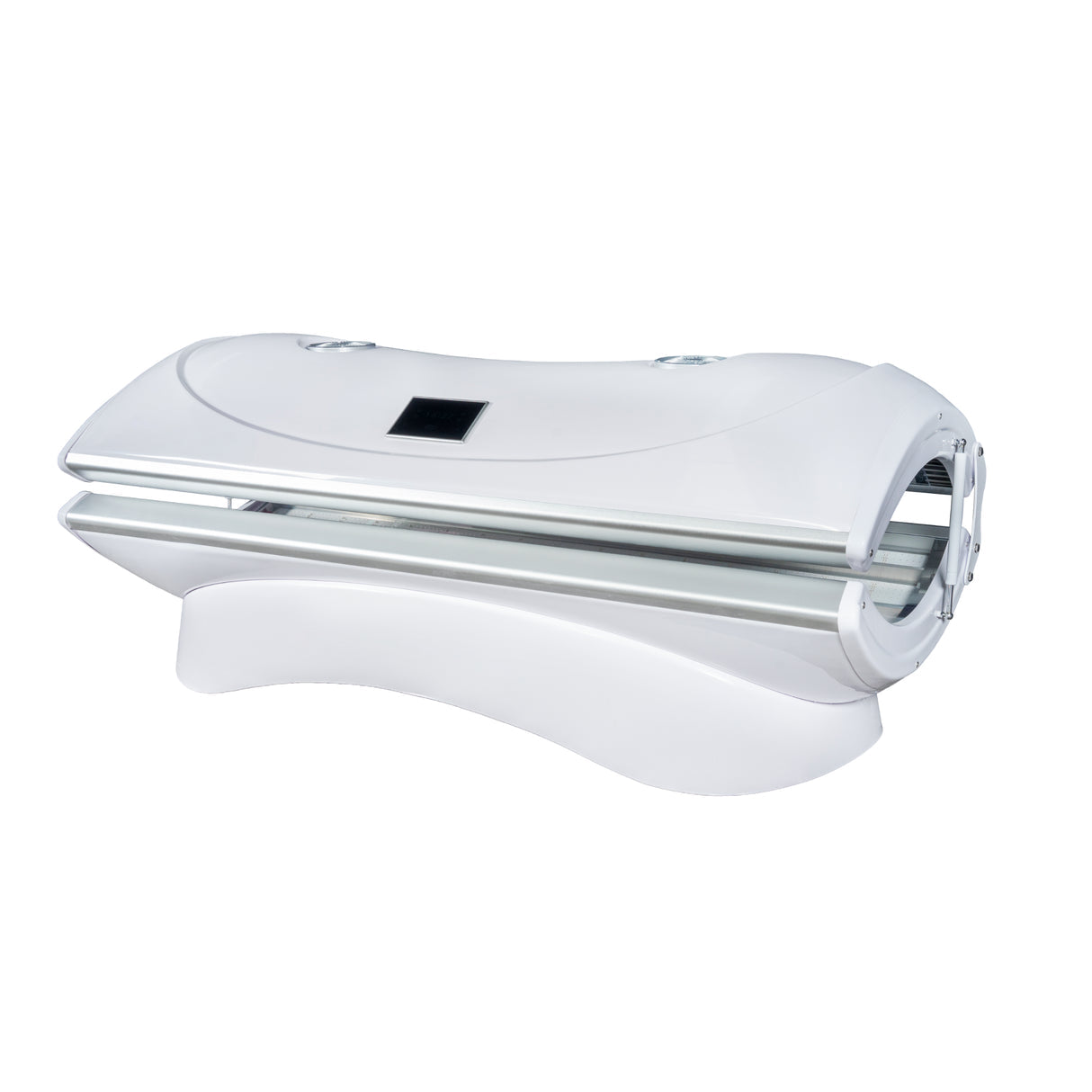

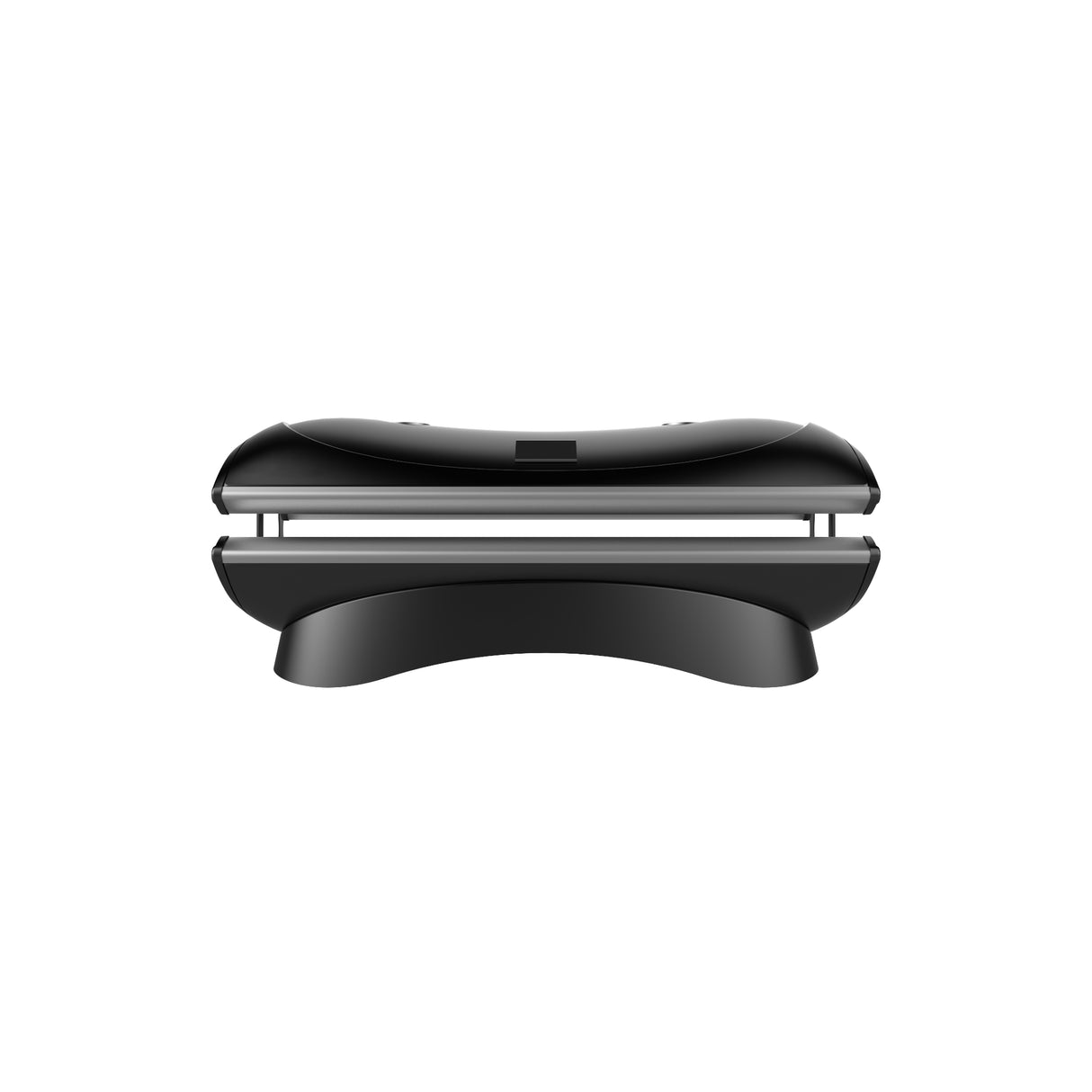

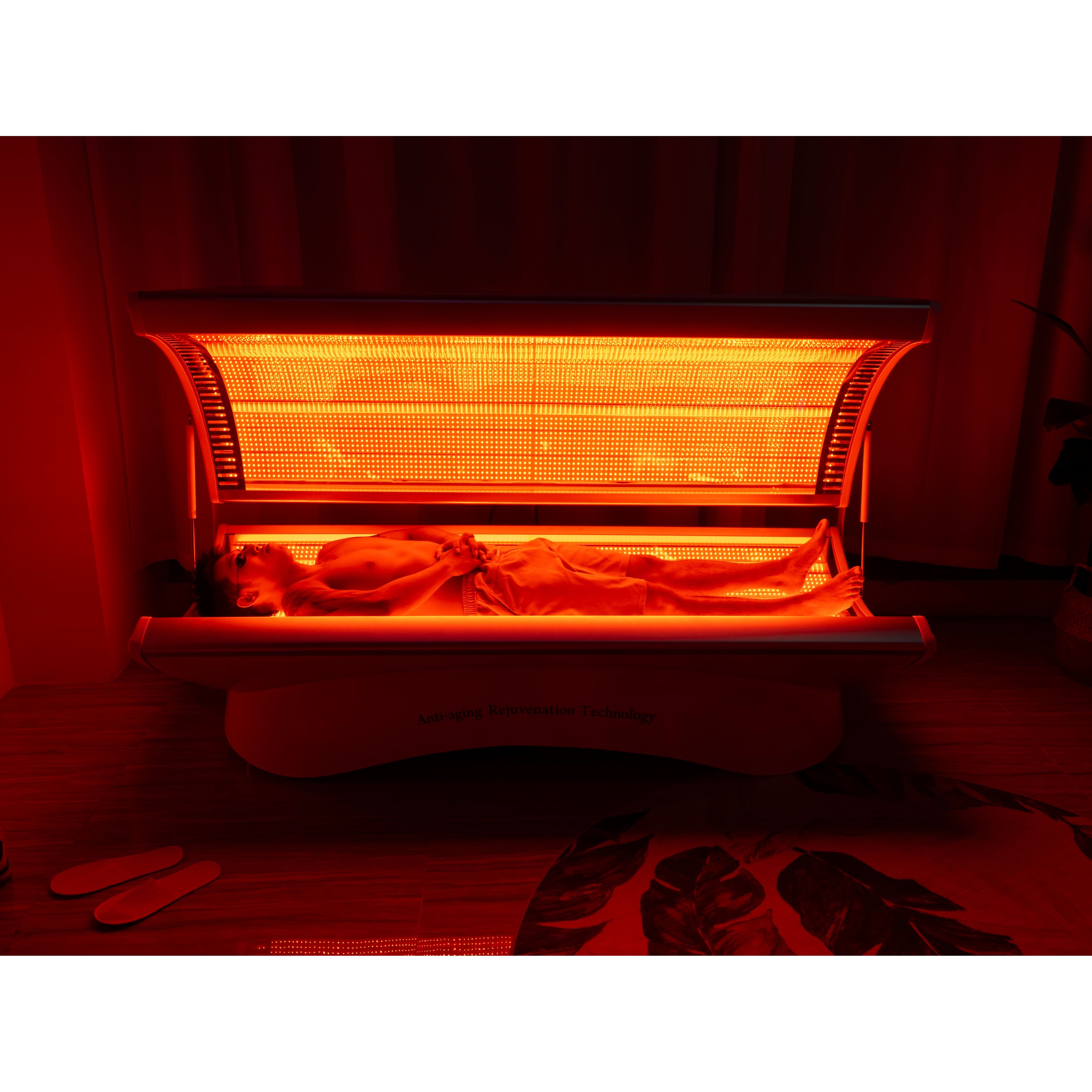

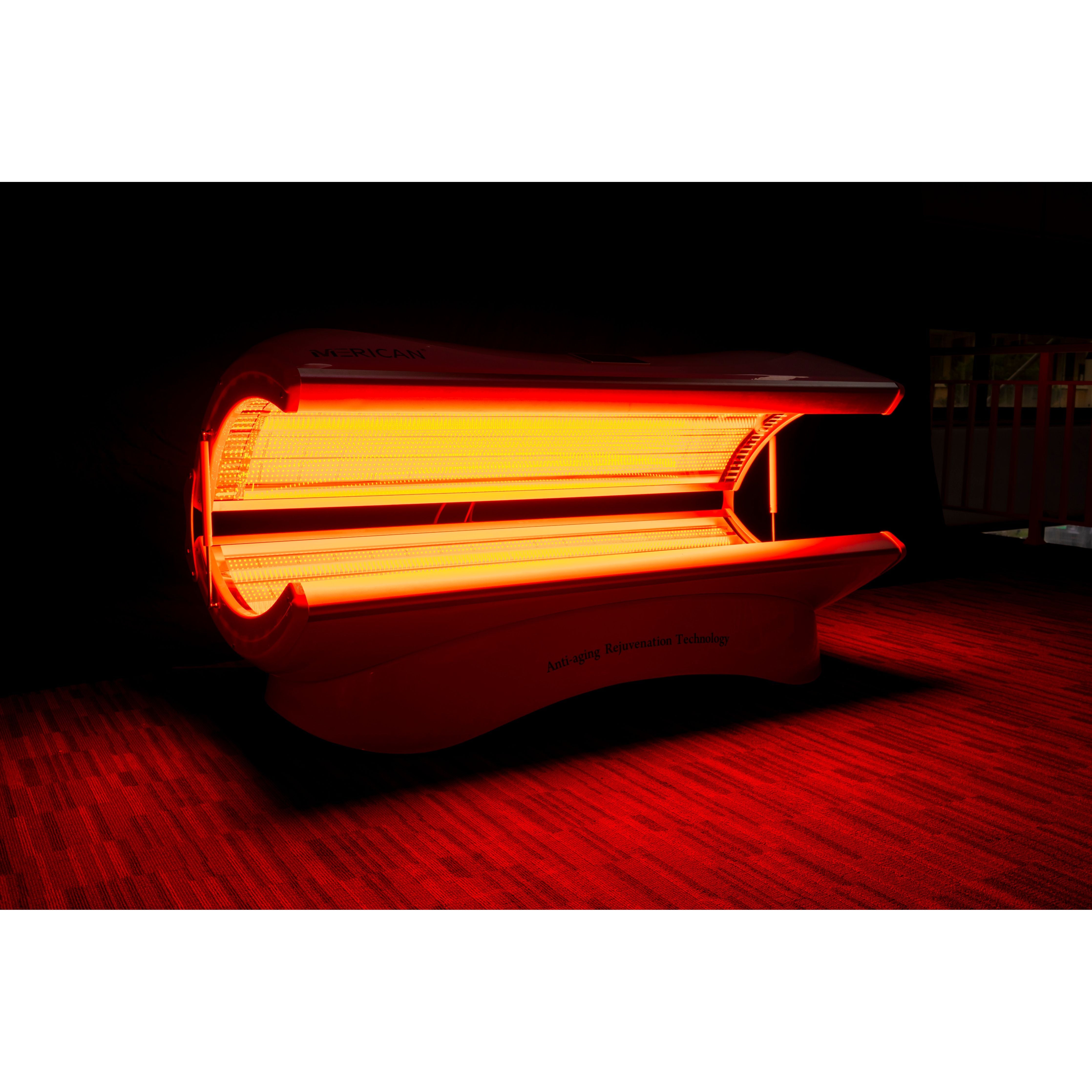

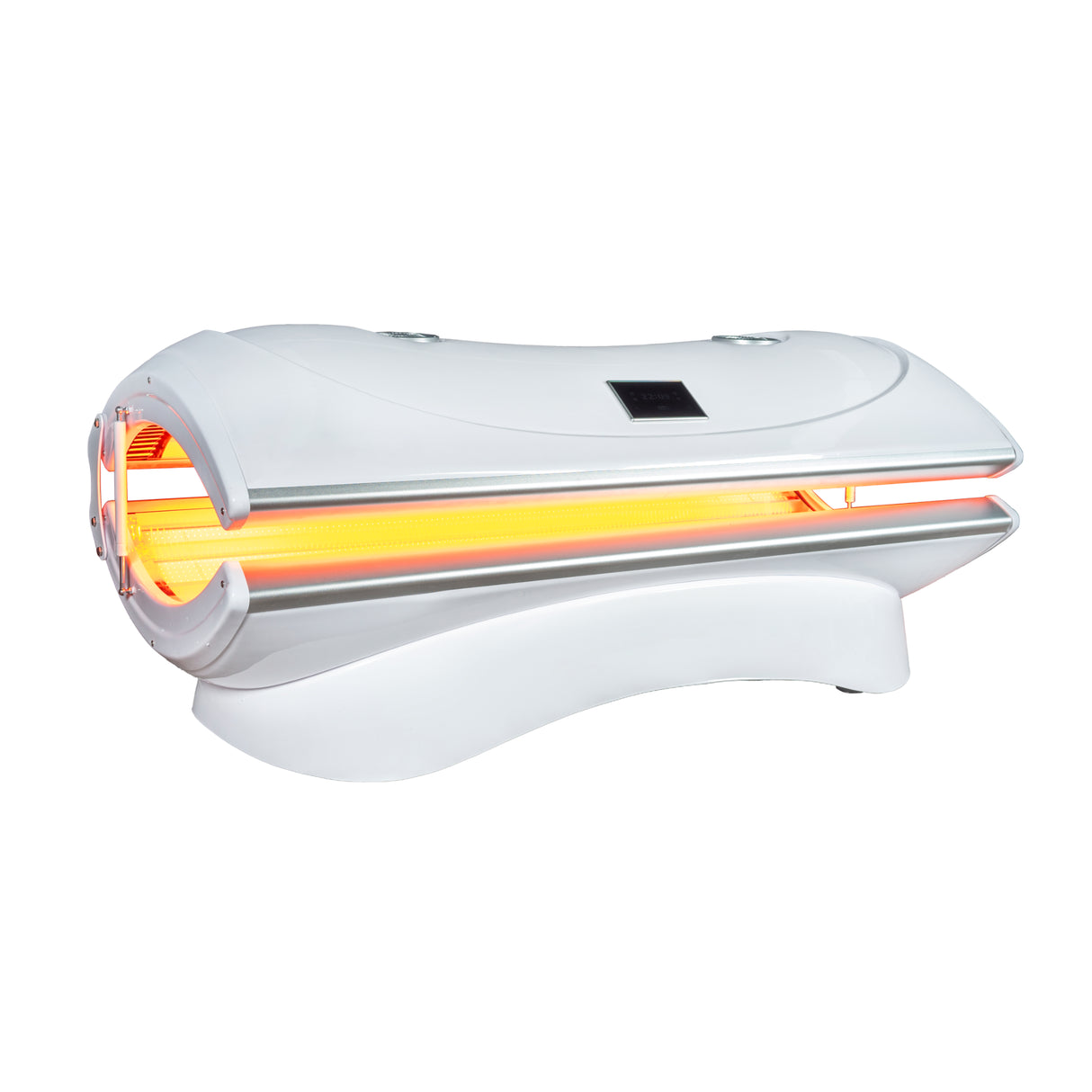

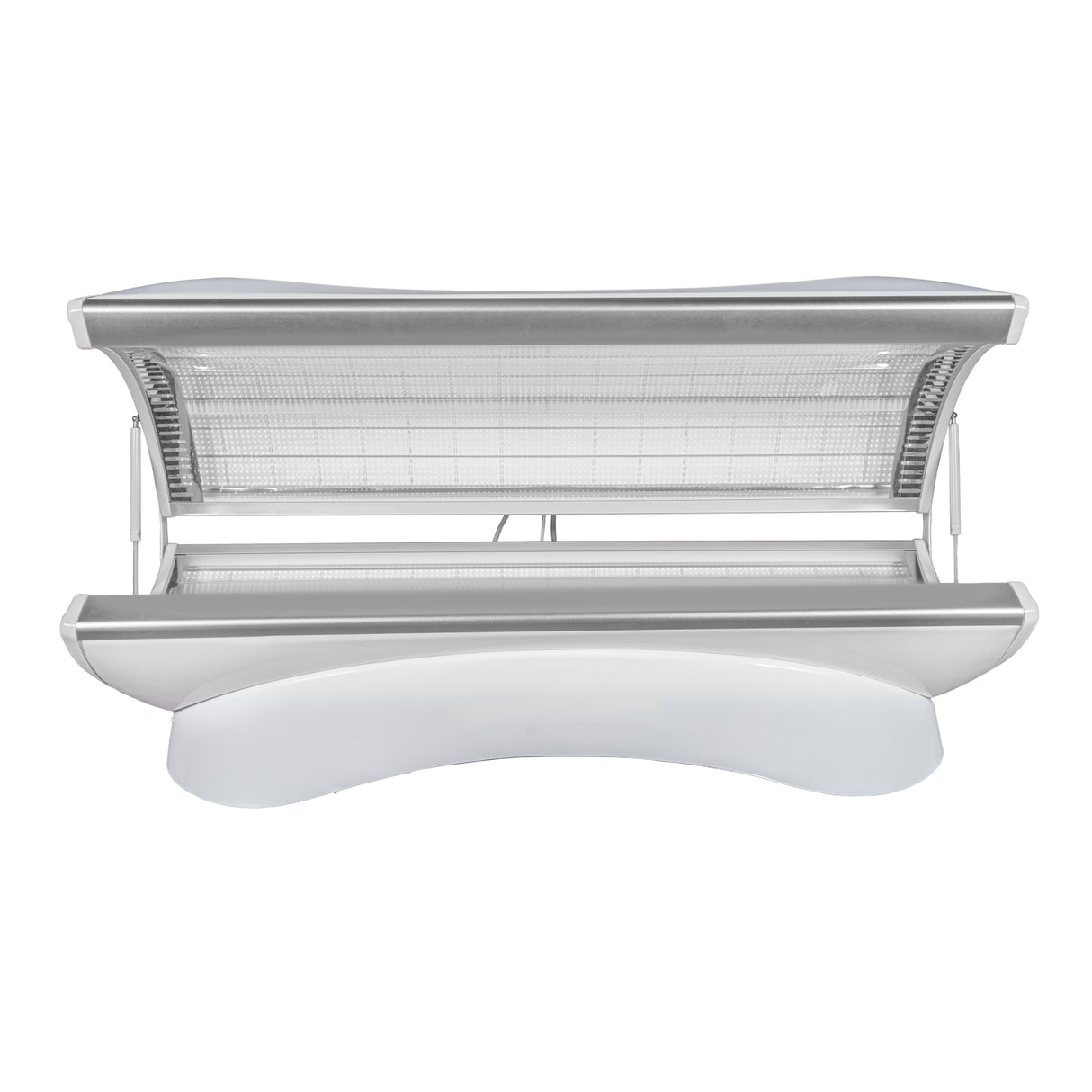

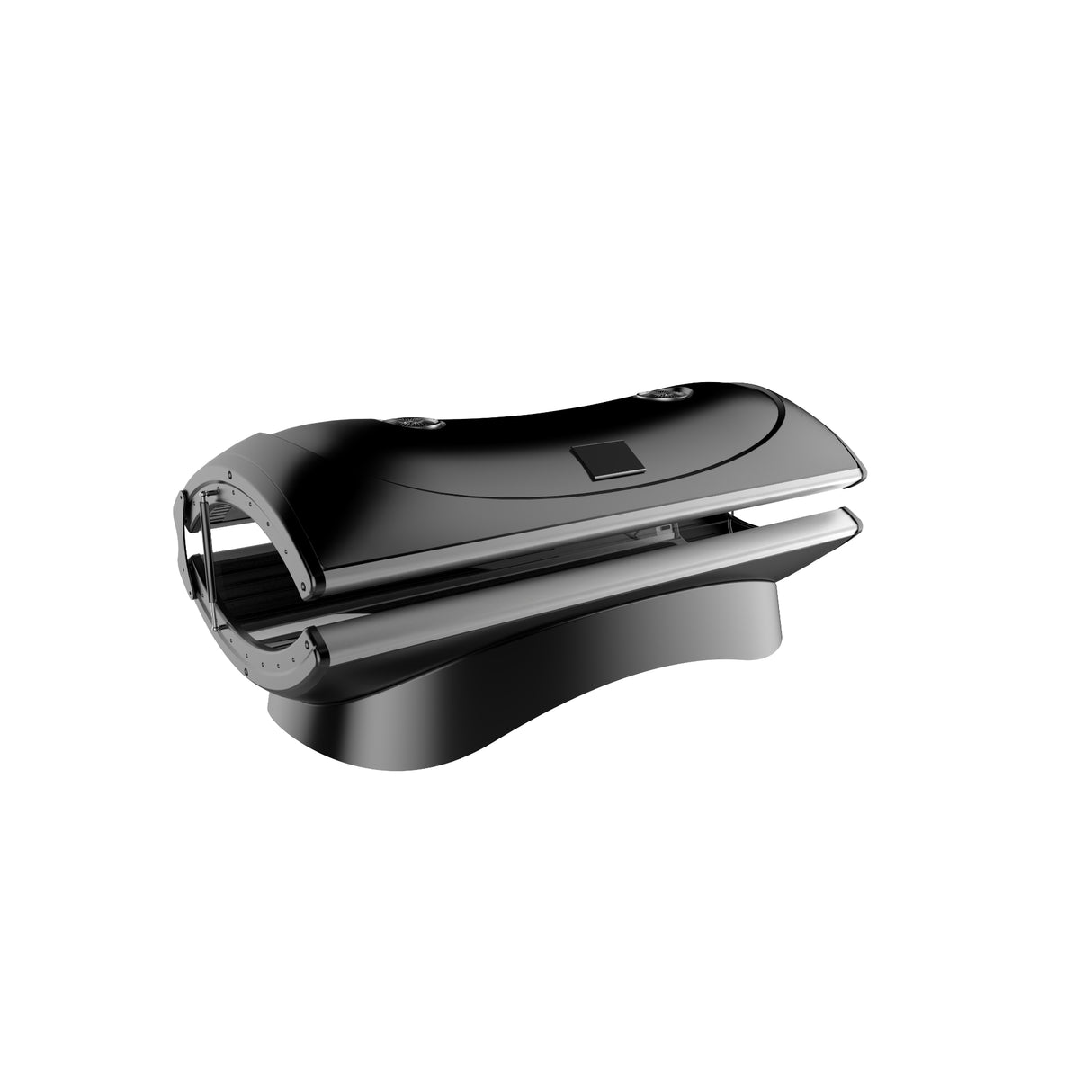

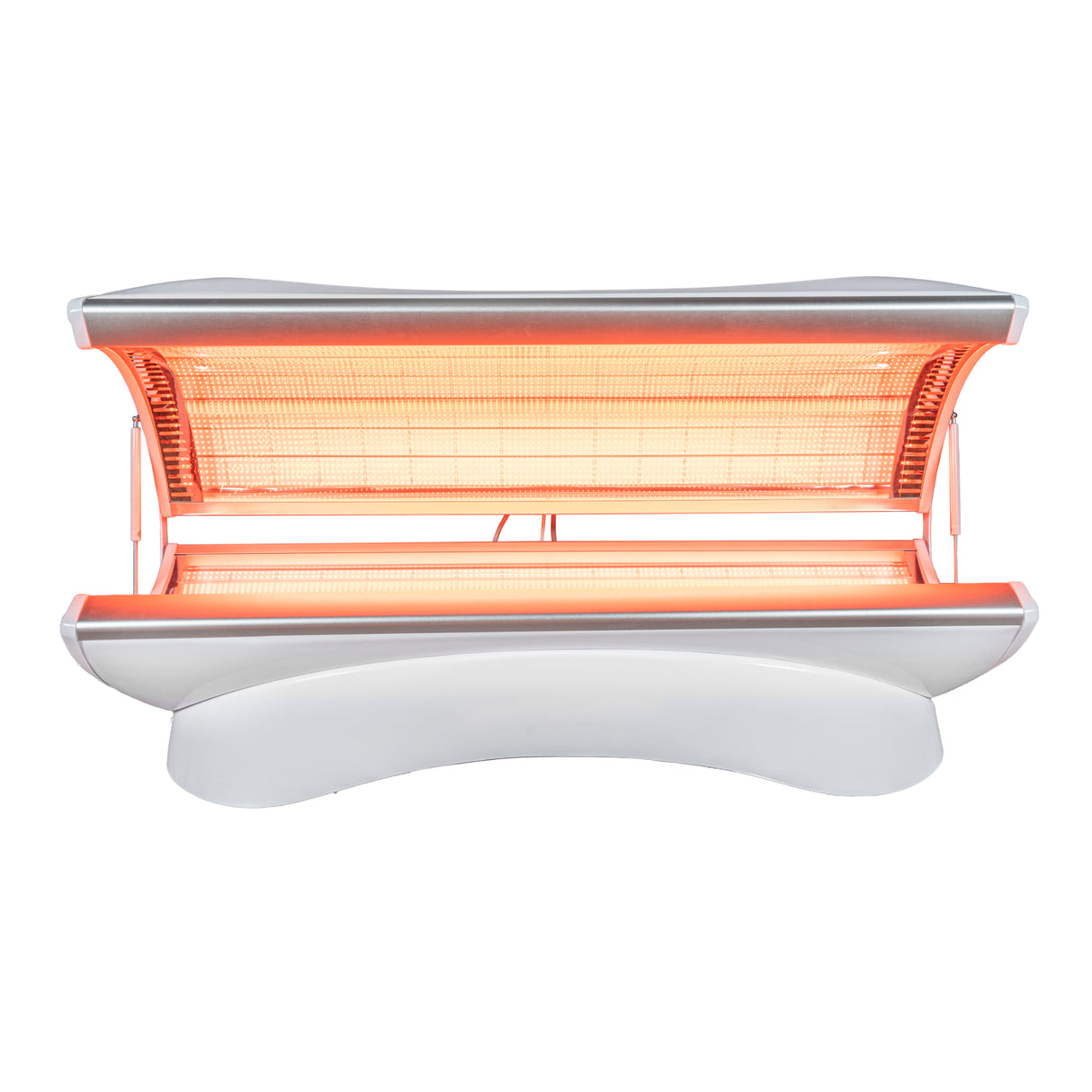

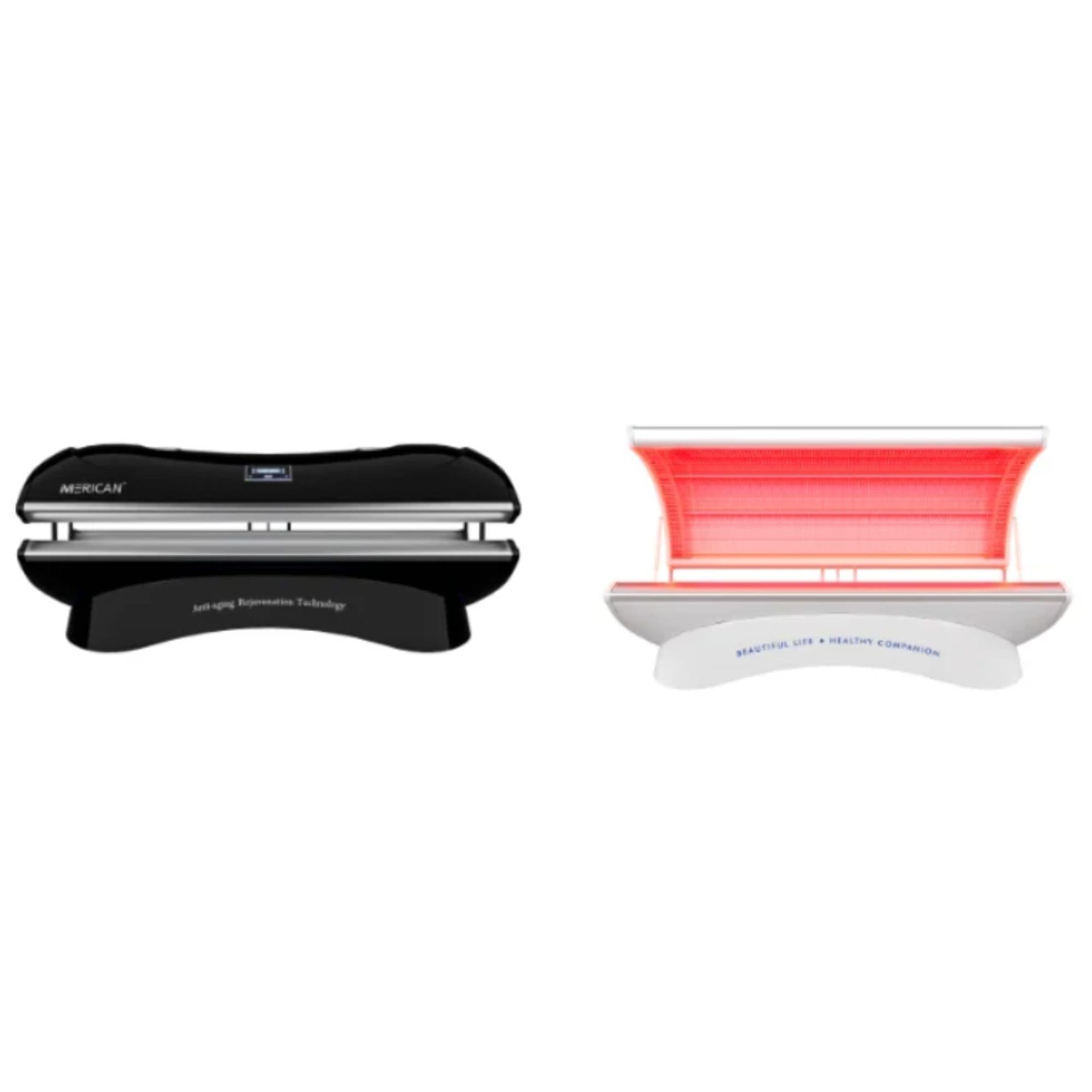

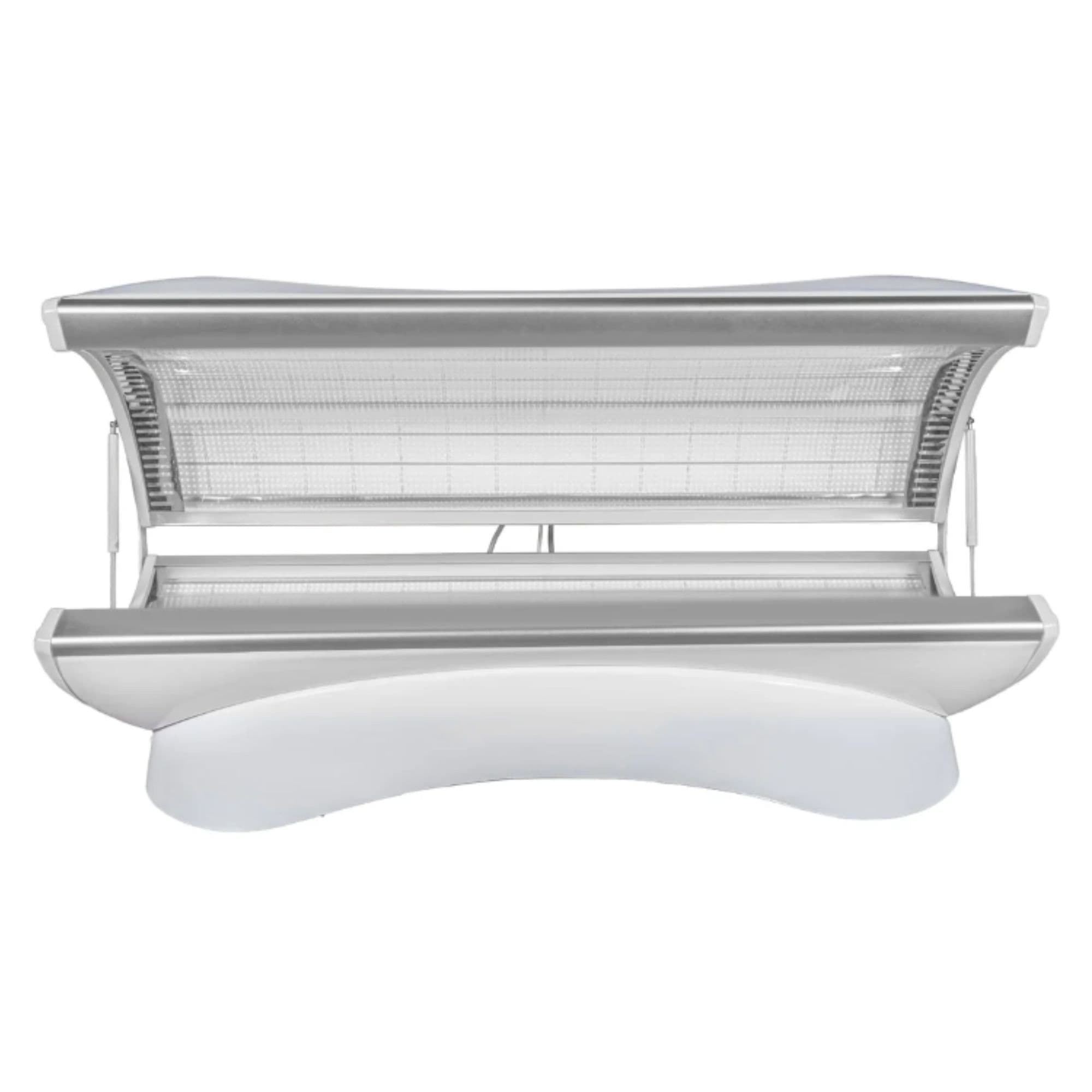

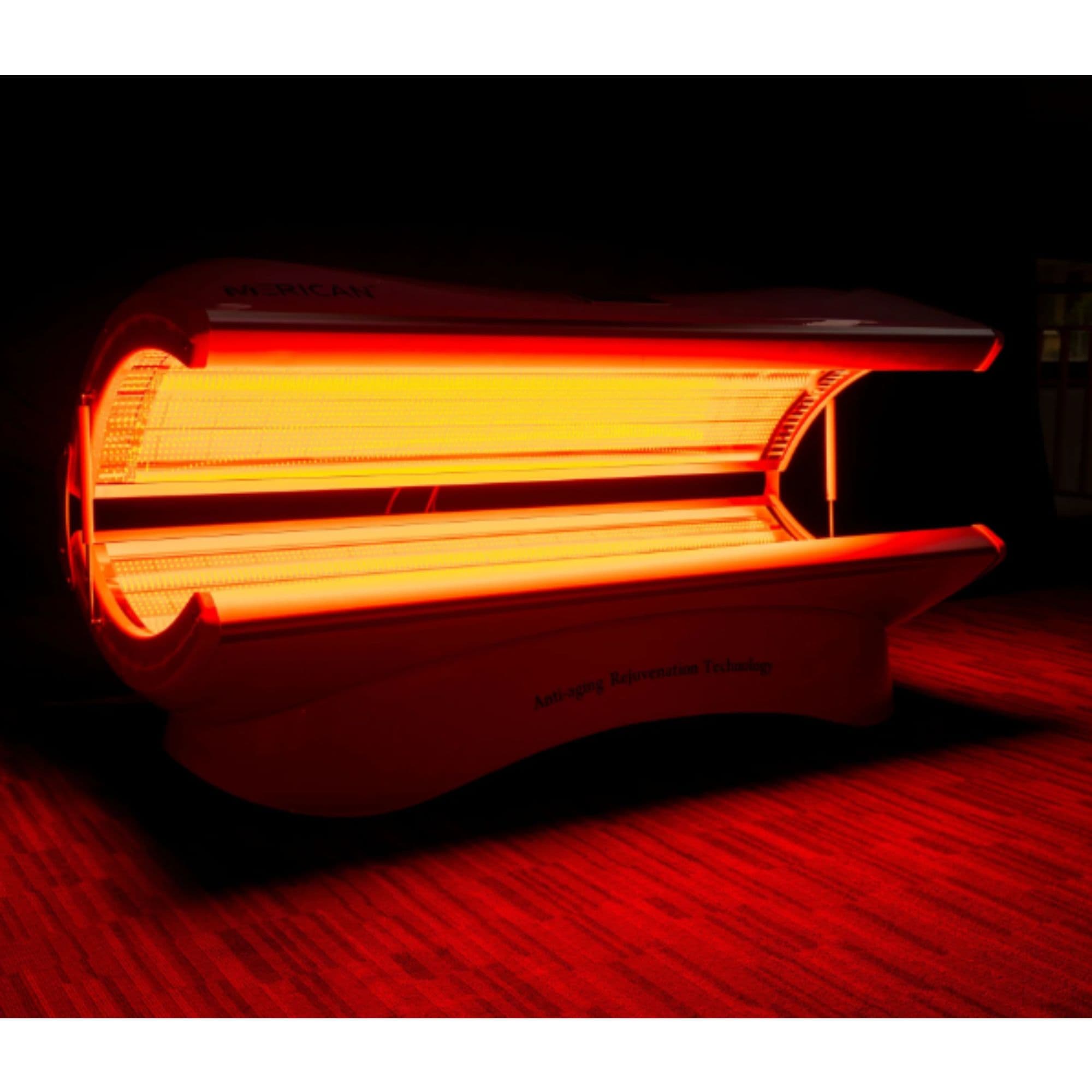

The Merican M4N Red Light Therapy Bed uses an open clamshell design to deliver red and near-infrared light from upper and lower LED arrays simultaneously. Two LED configurations let facilities balance output, electrical requirements, and budget while retaining the same five-wavelength control system.

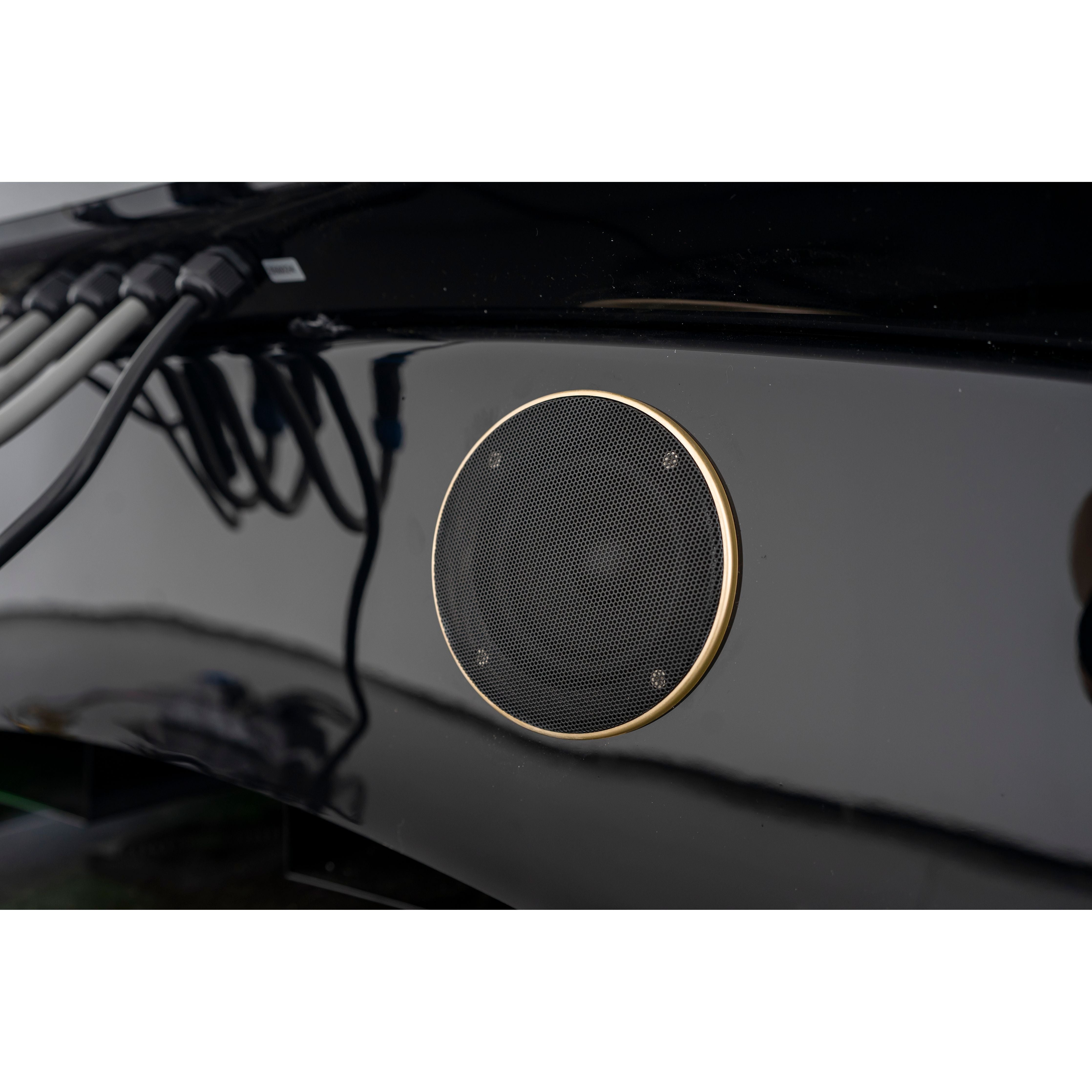

The M4N is available with 10,800 or 21,600 EPISTAR LEDs. Both versions provide five independently controllable wavelengths, continuous and pulsed operation, touchscreen control, wireless tablet support, and Bluetooth audio.

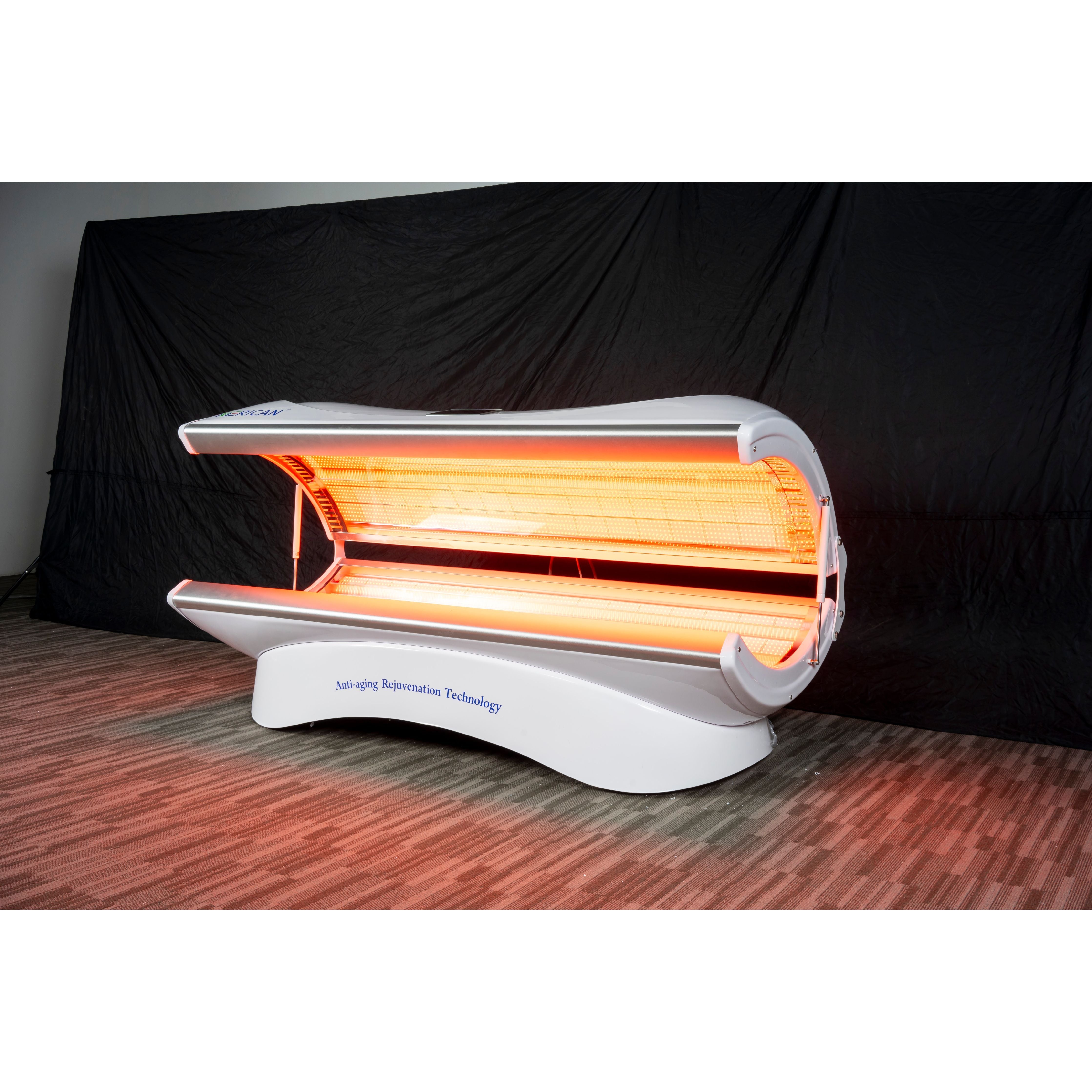

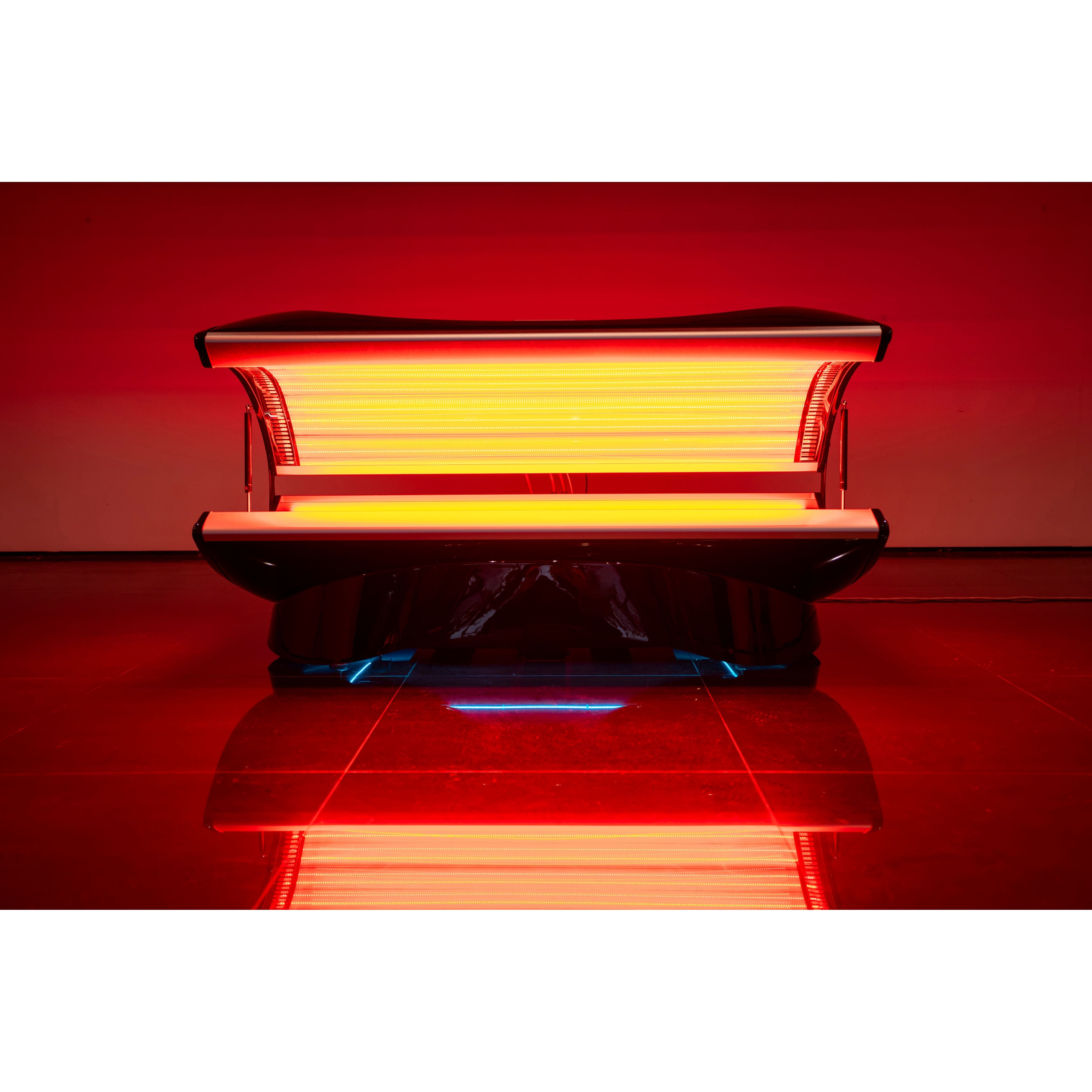

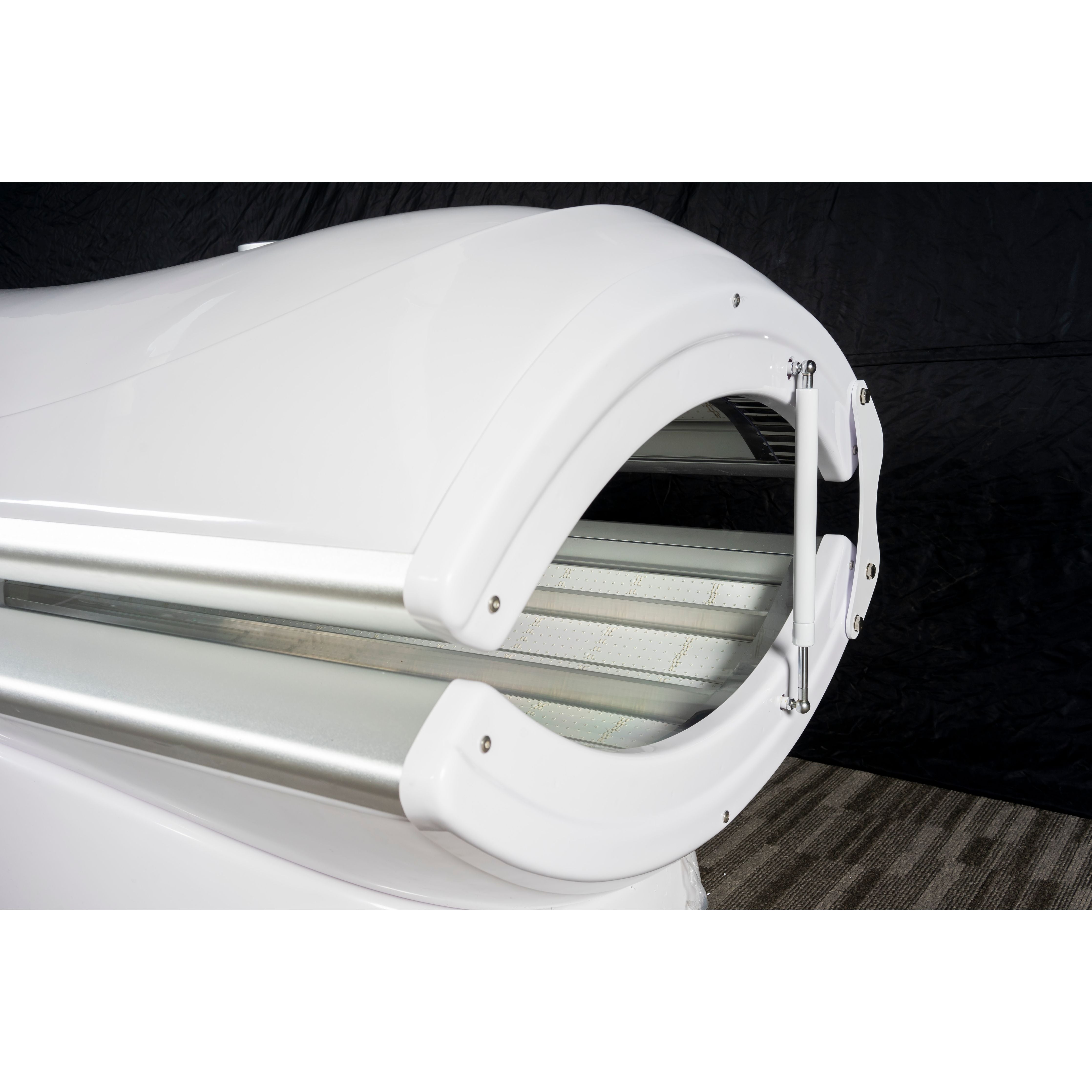

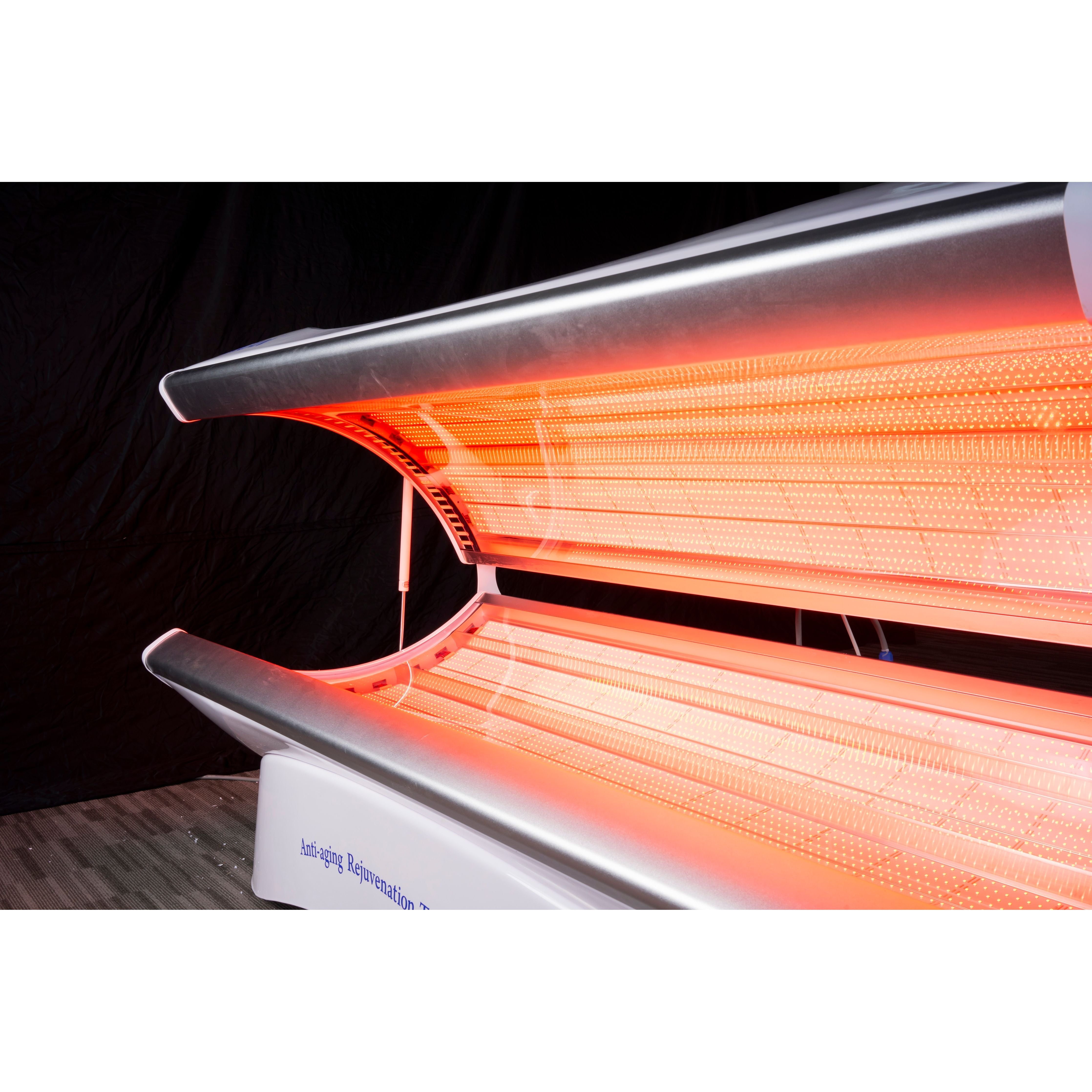

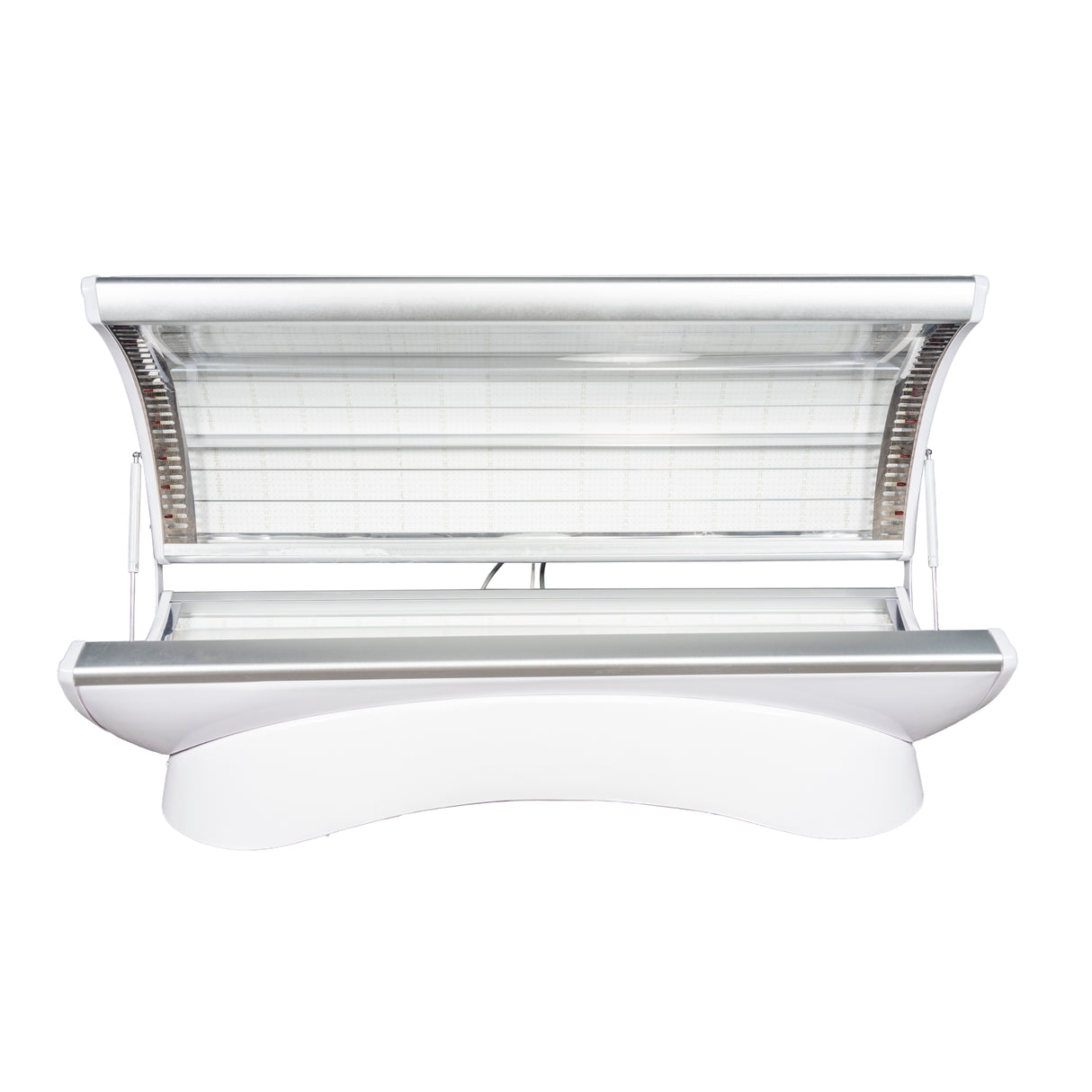

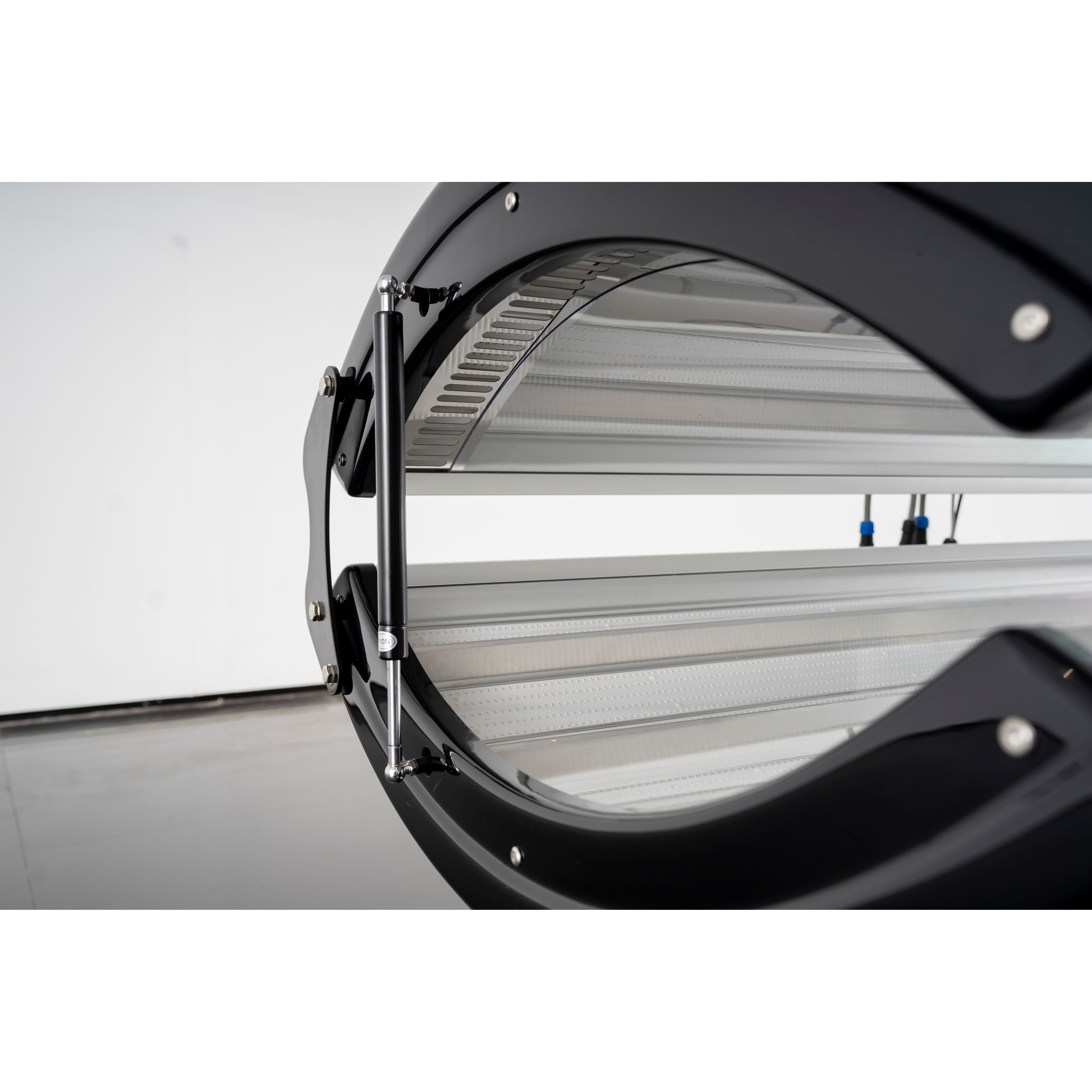

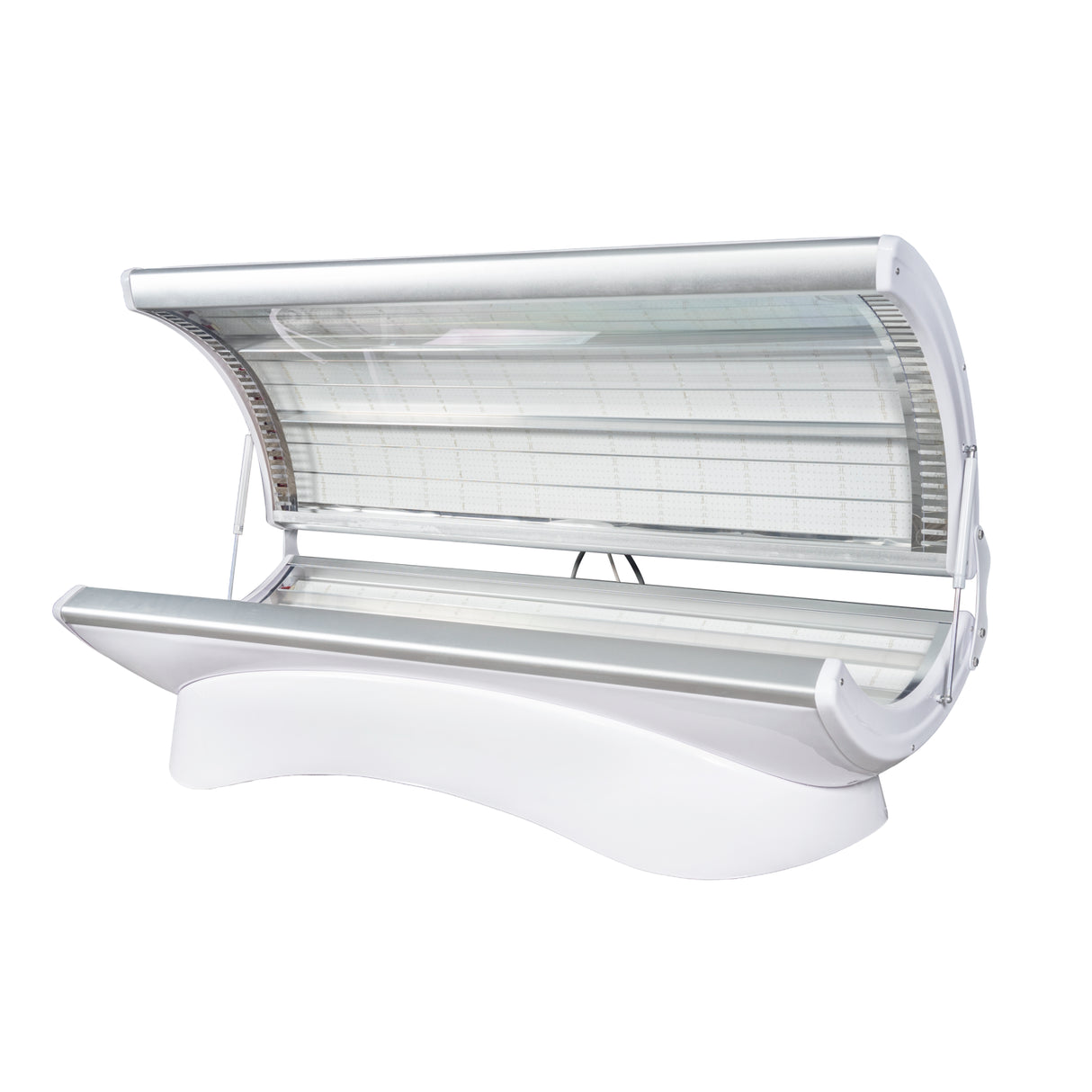

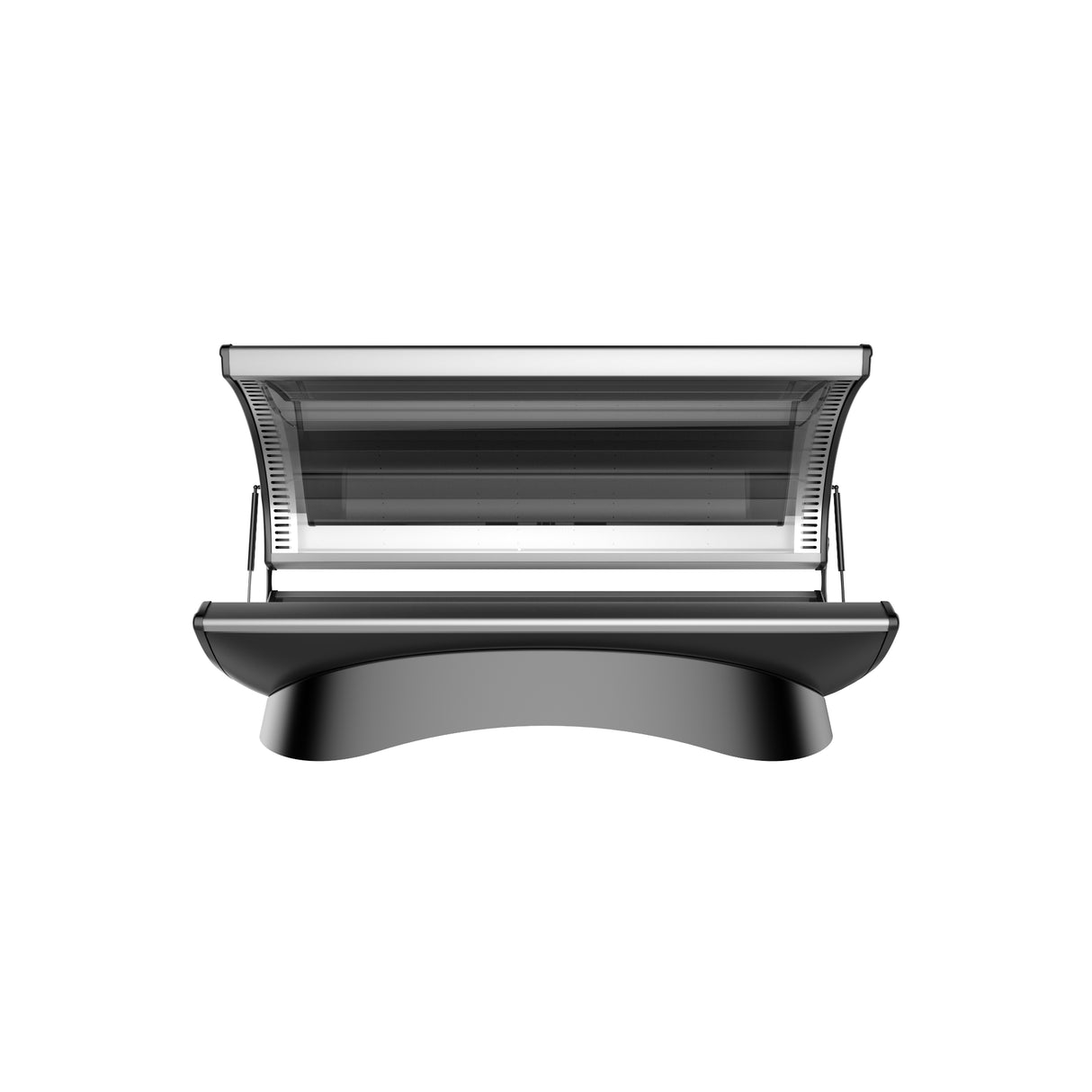

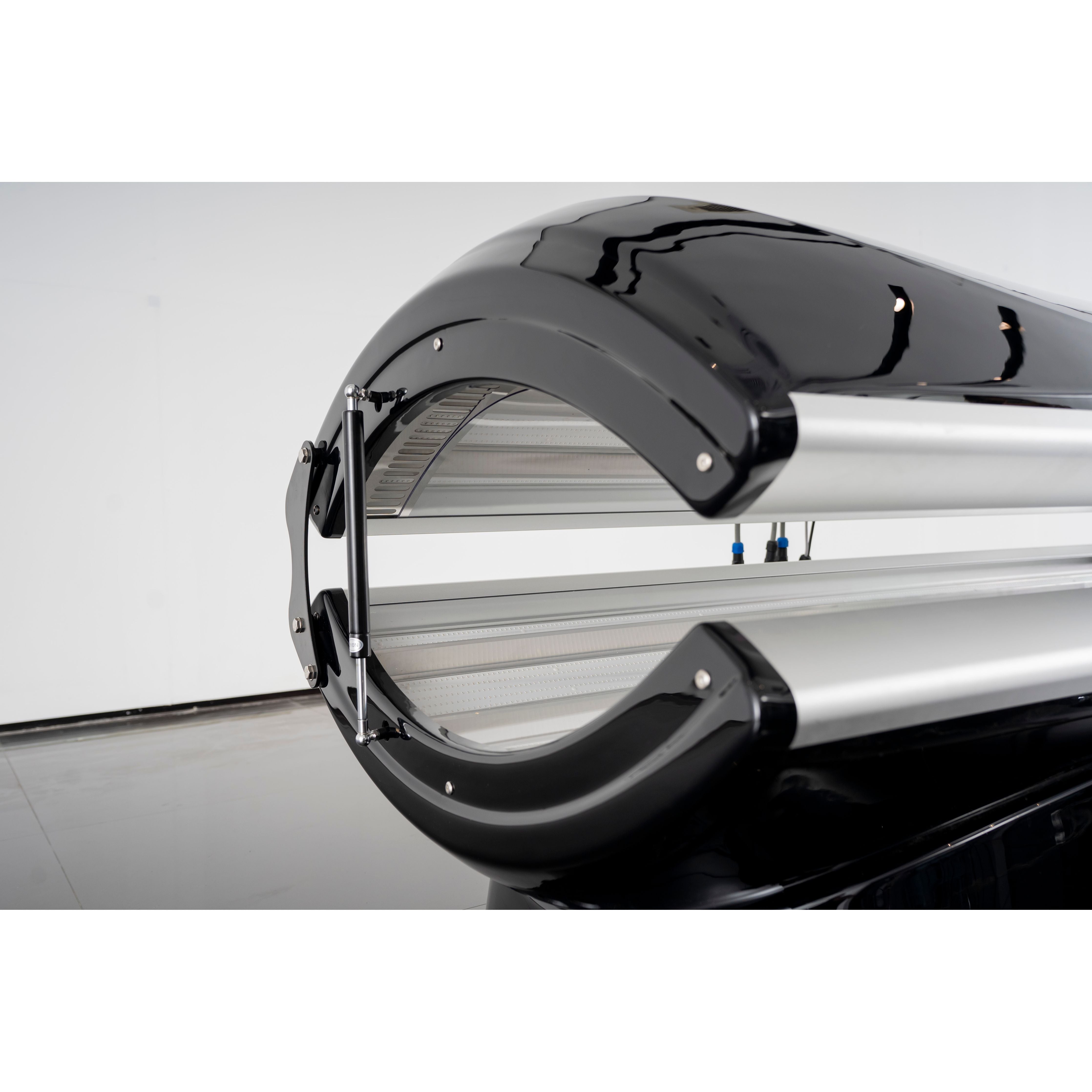

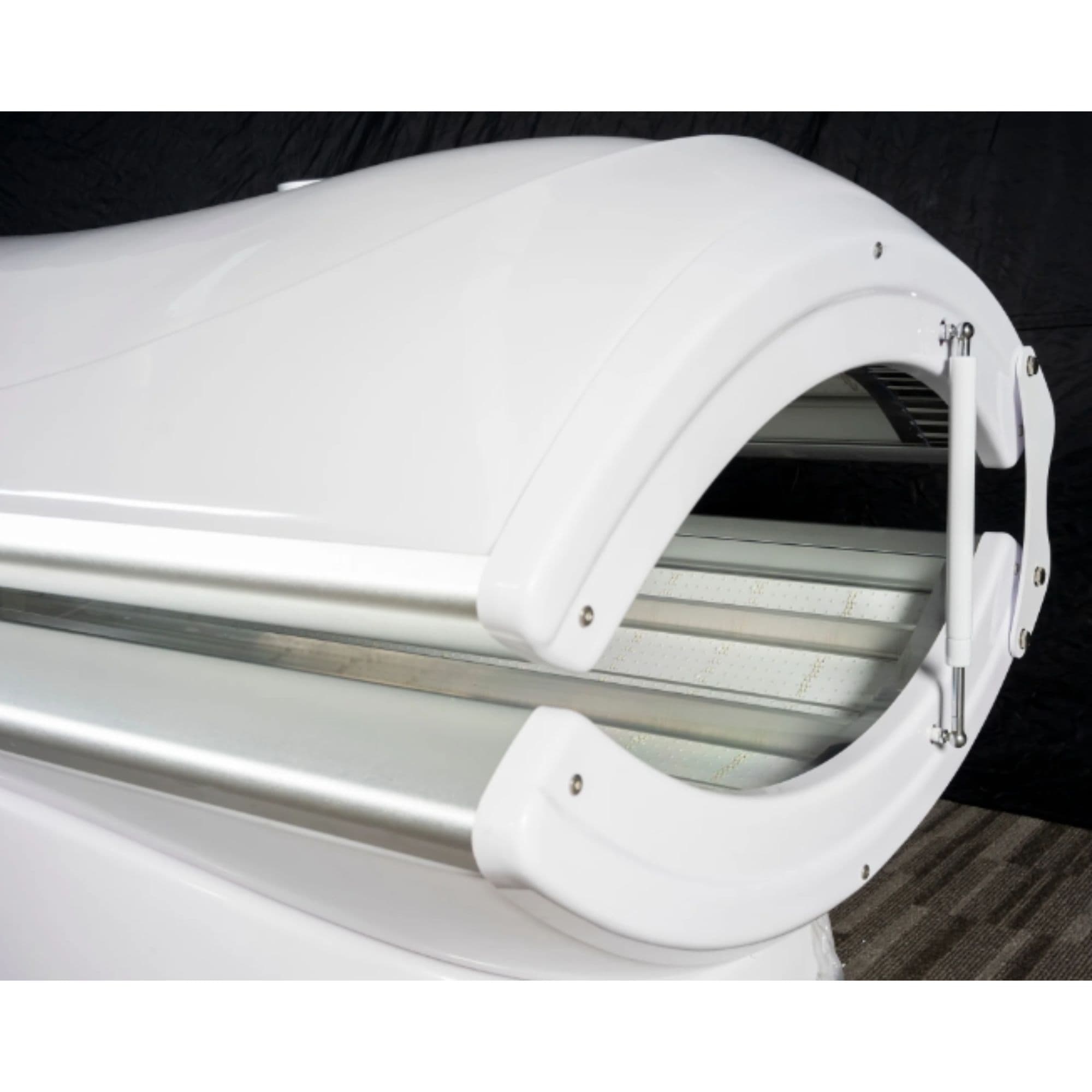

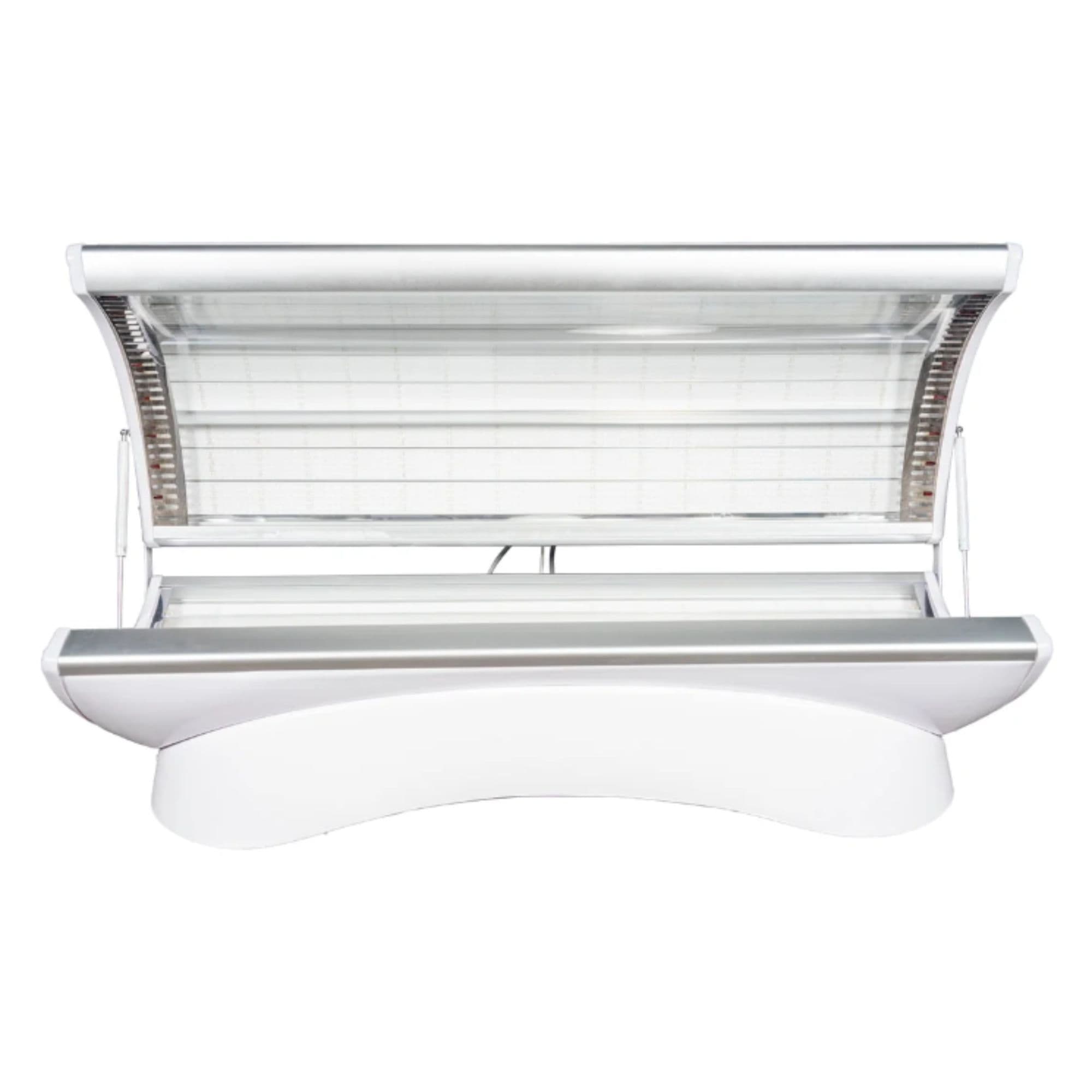

Upper and lower LED surfaces surround the user with light without requiring repositioning. The clamshell format also provides a more open experience than a fully enclosed tunnel bed.

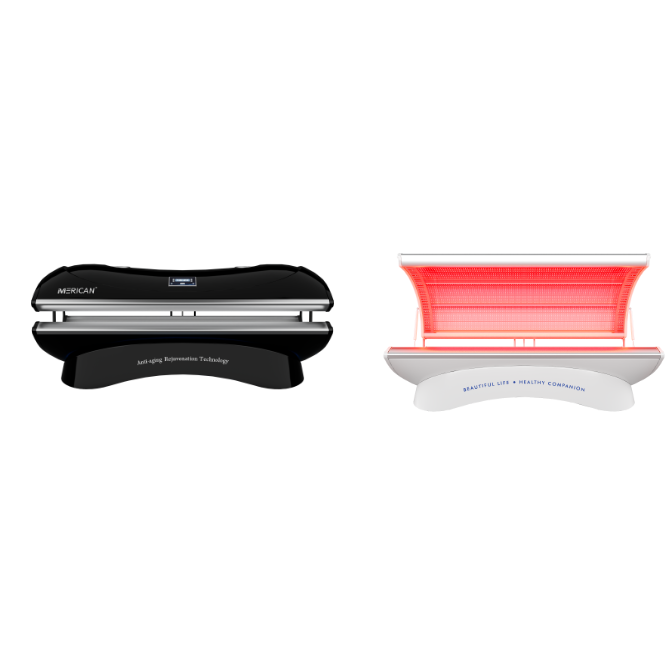

The full configuration doubles LED density and listed user-level irradiance, while the Lite configuration lowers power demand and supports plug-in installation.
| Dimensions | 76.4 × 32.3 in.; 33.9 in. open height |
|---|---|
| Interior canopy height | 17.2 in. |
| Net weight | 220 lb |
| LED count | 10,800 or 21,600 |
| User-level irradiance | Approx. 30 or 60 mW/cm² |
| Wavelengths | 633, 660, 810, 850, 940 nm |
| Power | 1,500 W or 3,000 W |
| Voltage | 110 V or 220 V |
Each wavelength can be selected independently, allowing red-only, near-infrared-only, or combined operation based on facility protocol.
Premium EPISTAR diodes are rated for 100,000 hours, with no UV output or conventional lamp replacement schedule.

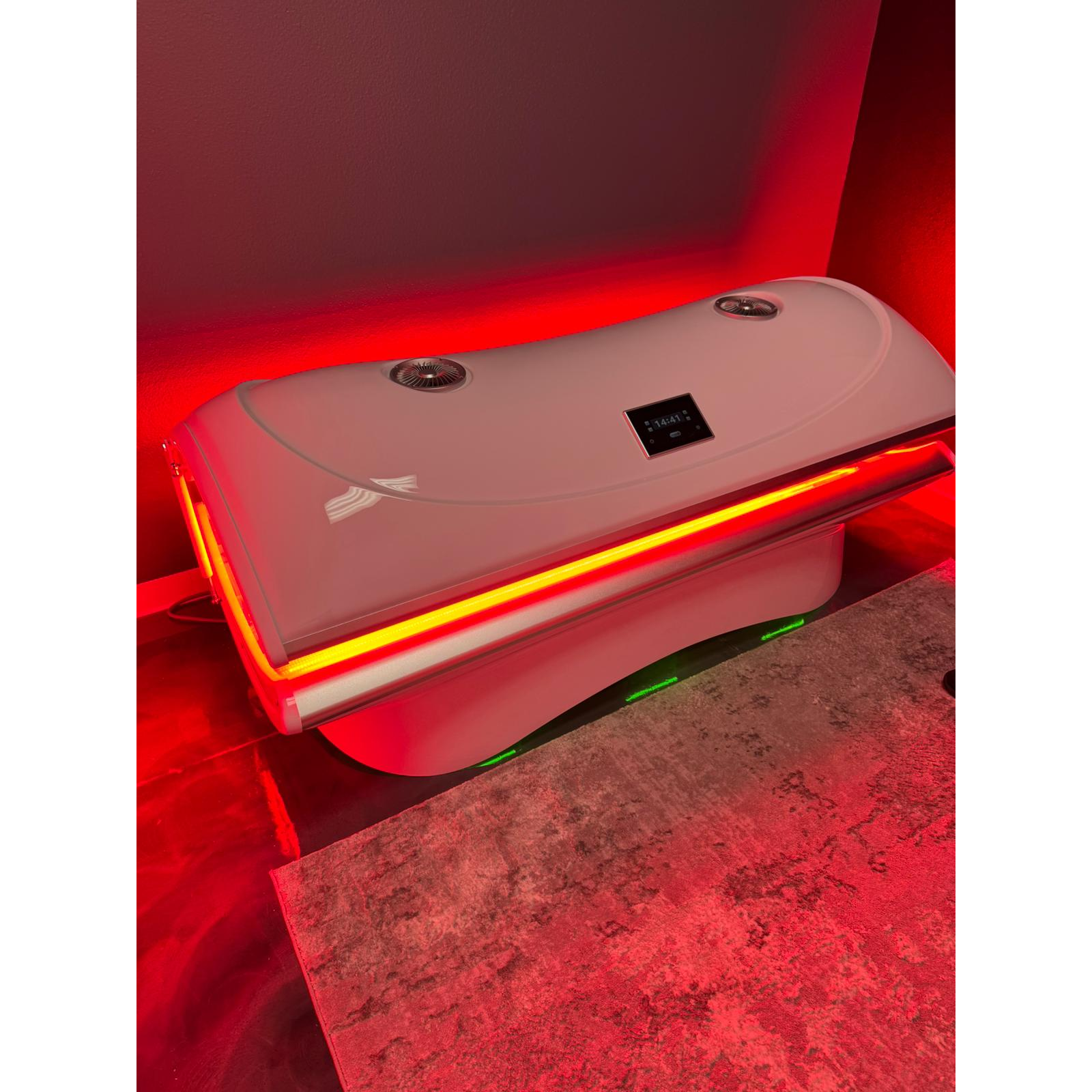

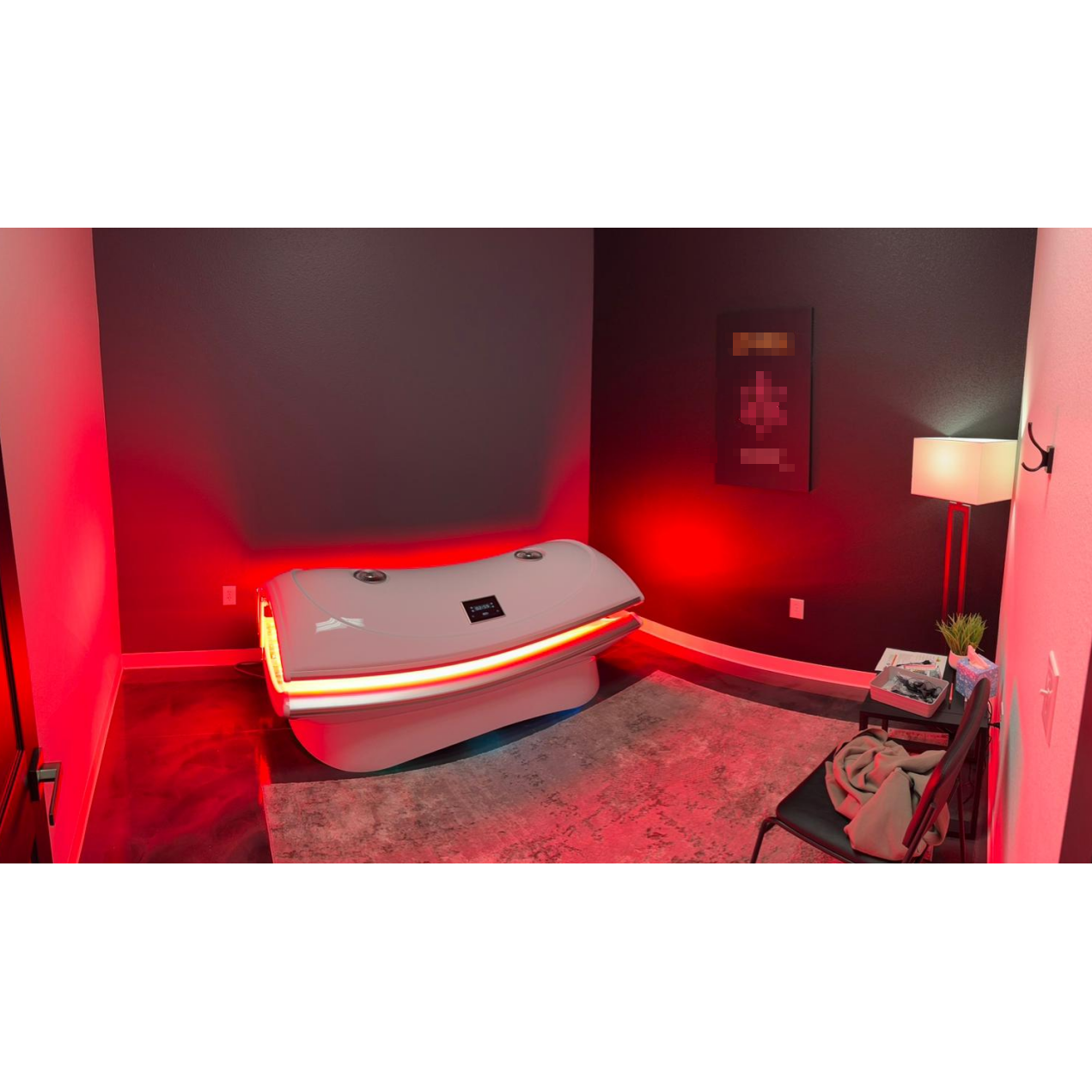

The M4N works well for spas, wellness centers, recovery studios, and other professional settings that prefer an open full-body bed with flexible configuration choices.
What’s included:
Installation note: Electrical requirements depend on the selected configuration. The Lite model supports plug-in power; the full model may require a dedicated circuit with breaker and RCD/GFCI.
Warranty: 5 years for the main unit and 1 year for acrylic components.
