Macy-Pan Mini HE5000 Hyperbaric Chamber: Pro-Grade 2.0 ATA for Three People
The Macy-Pan Mini HE5000 delivers professional-level 2.0 ATA pressure in a compact three-person configuration—the highest pressure available outside high end facilities. At 47 inches wide versus the full HE5000's 63 inches, this "mini" hard shell fits tighter spaces while still accommodating couples, parent-child pairs, or small group sessions at maximum pressure.
✓ Fixed 2.0 ATA professional-grade pressure: Highest intensity available in commercial chambers
✓ Three people share maximum pressure: Couples go together, parents supervise children, wellness centers serve small groups—all at 2.0 ATA simultaneously
✓ 16 inches narrower than full model: 47" width fits spaces where 63" HE5000 won't—get multi-person 2.0 ATA capability in smaller rooms
✓ Hard shell stainless steel construction: Pro-grade materials handle 2.0 ATA reliably—not soft chambers that can't safely reach this pressure
✓ Dual 20L/min concentrators included: 40 liters total oxygen flow maintains 93% concentration for three people at maximum pressure—no compromising oxygen levels
Macy-Pan Mini HE5000: Commercial Standards in Compact Package
Macy-Pan engineers the Mini HE5000 with the same stainless steel construction and safety systems as high end commercial hyperbaric chambers—pressure-resistant windows, CO2 removal, 2-way intercom, climate control. ISO 13485 device certification proves this isn't adapted home equipment, but a purpose-built chamber for three users.
✓ Pressure-resistant windows handle 2.0 ATA: Specialized polycarbonate panels engineered for maximum pressure—standard windows would fail at this intensity
✓ 2-way intercom maintains communication: Talk to people outside chamber during 2.0 ATA sessions—essential safety feature for maximum pressure operation

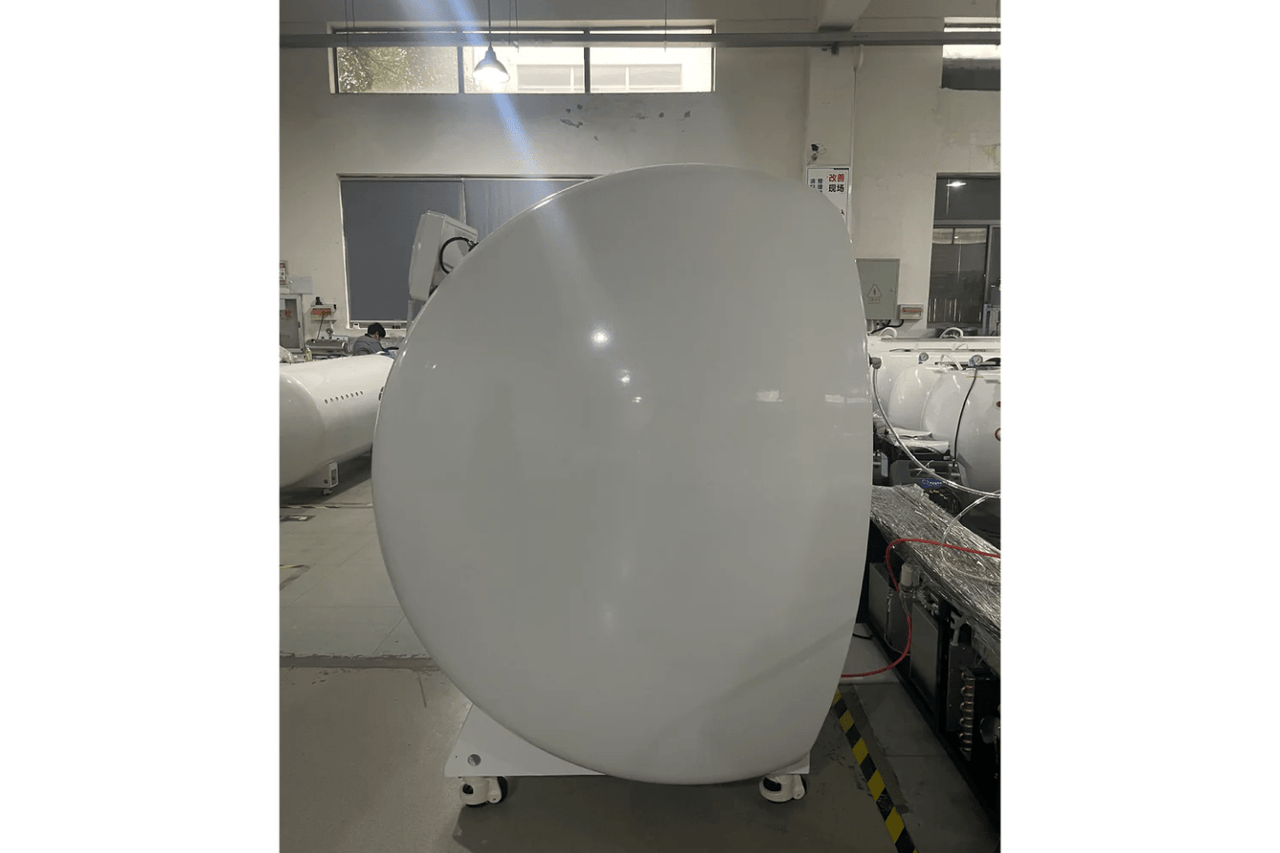

✓ Rounded structure distributes pressure: Curved stainless steel design handles stress uniformly—prevents weak points at 2.0 ATA intensity
✓ Patented design with 15+ years refinement: Macy-Pan holds patents on multi-person hard shell design—this isn't their first 2.0 ATA chamber
Mini HE5000 Hyperbaric Chamber: Complete 2.0 ATA System Delivered
Everything arrives configured for professional-grade 2.0 ATA operation—dual concentrators, system machine, CO2 removal, climate control, intercom, all sized for three simultaneous users at maximum pressure. Professional installation positions the 926 lb hard shell once, then your family or small wellness centers begins 2.0 ATA sessions immediately.
✓ All components rated for 2.0 ATA: Dual 20L concentrators, 140L/min airflow, reinforced systems—every element engineered for maximum pressure with three users
✓ Narrower footprint fits more spaces: 47" width navigates tighter doorways, smaller rooms—get 2.0 ATA capability where full HE5000 won't fit
✓ Intercom pre-installed: 2-way communication system ready—essential for monitoring users during intense 2.0 ATA sessions
✓ Entertainment systems install easily: TV and Bluetooth compatibility built-in—make 60-90 minute maximum-pressure sessions comfortable
✓ Universal power compatibility: 110V, 220V, or 240V—adapts to any electrical system despite pro-grade 2.0 ATA capability
Macy-Pan Mini HE5000 Sitting Chamber: Maximum Pressure Without Maximum Space

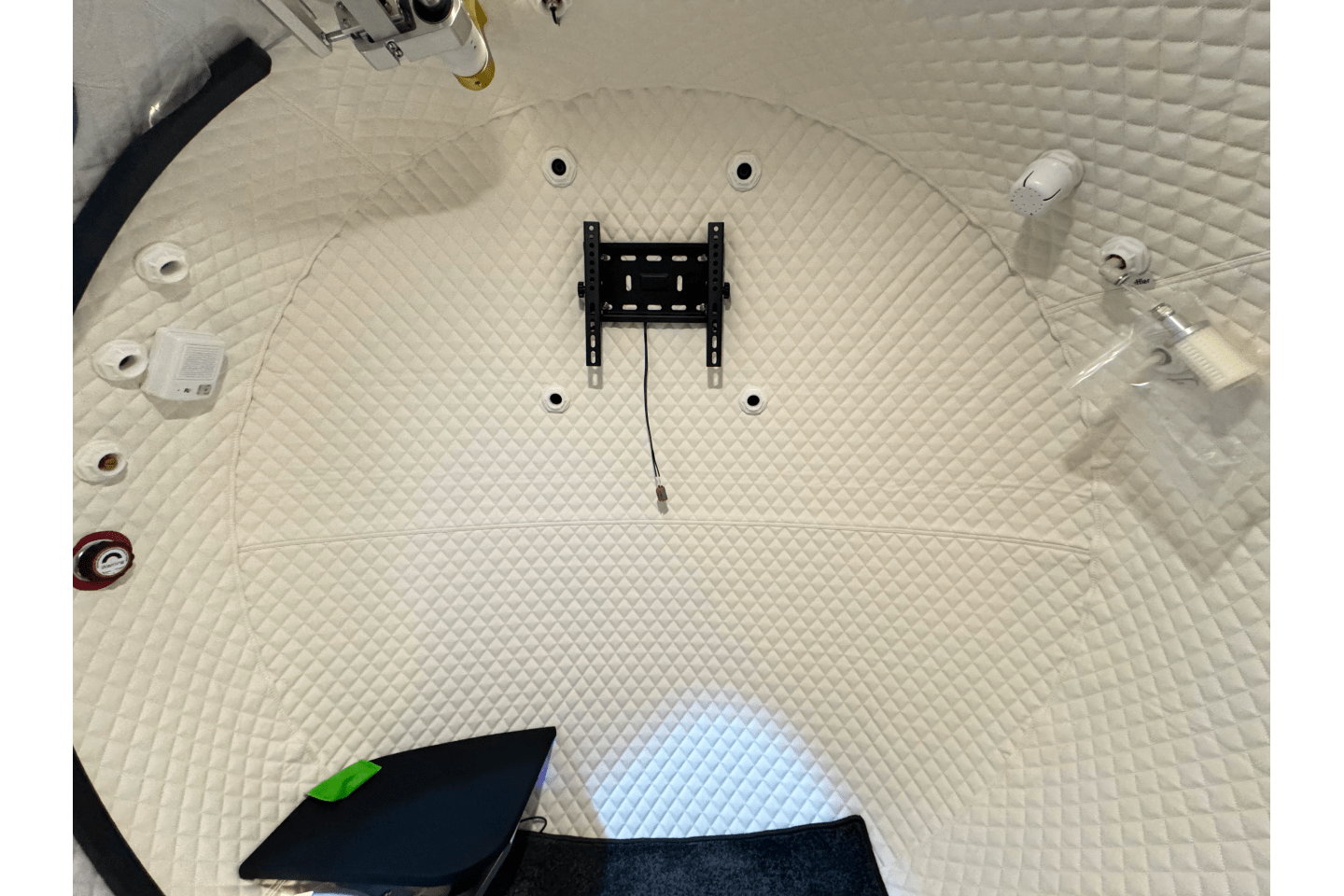

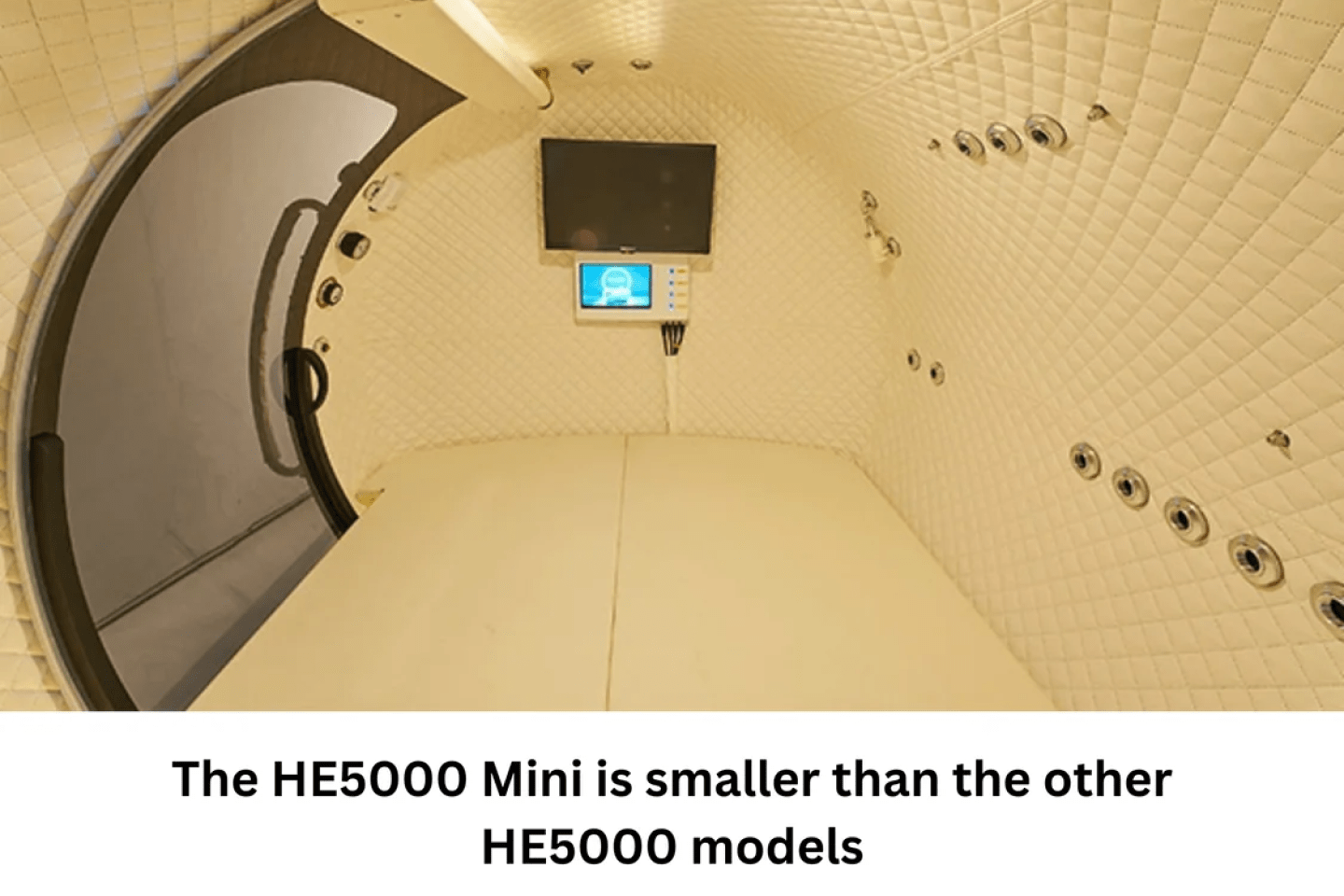

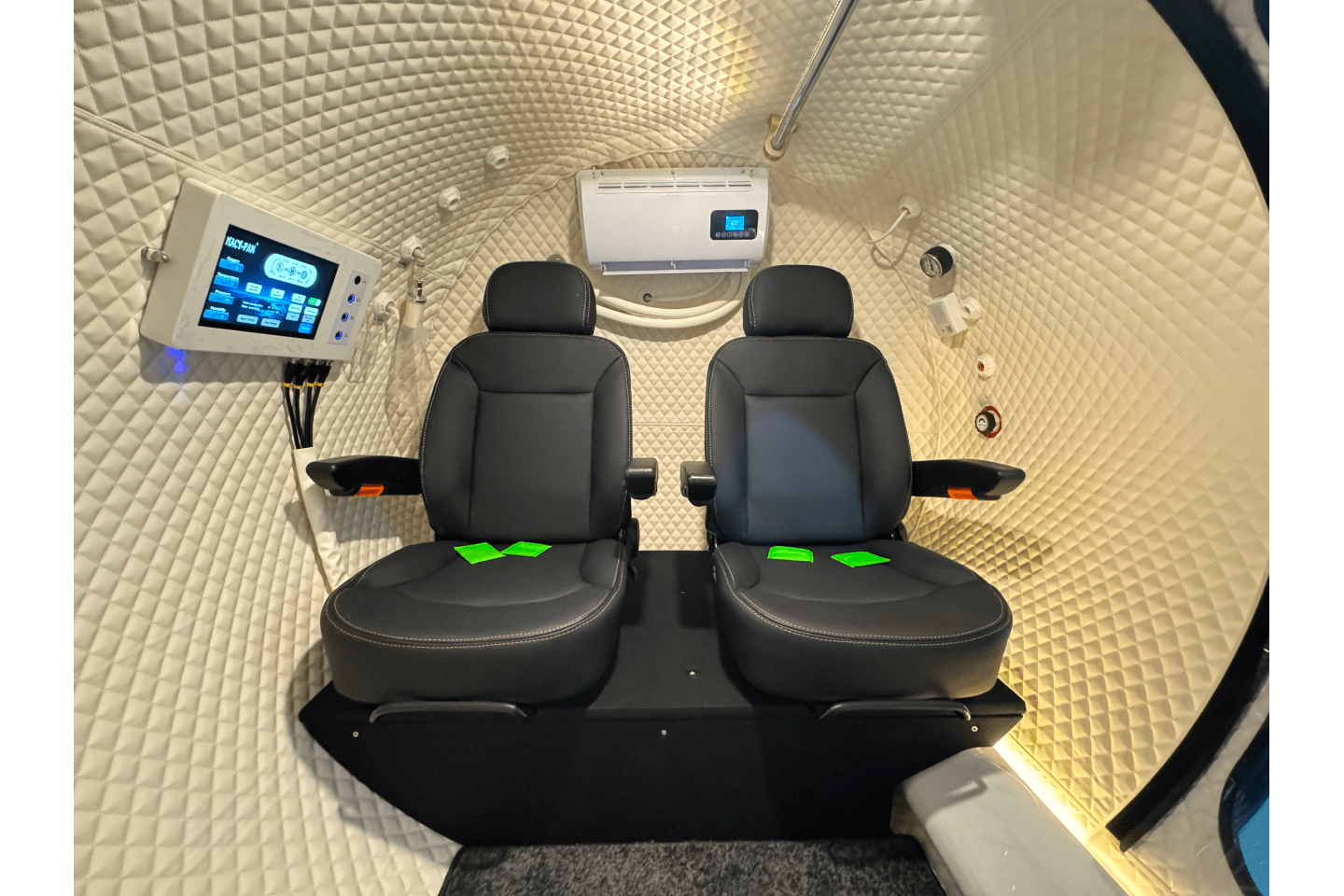

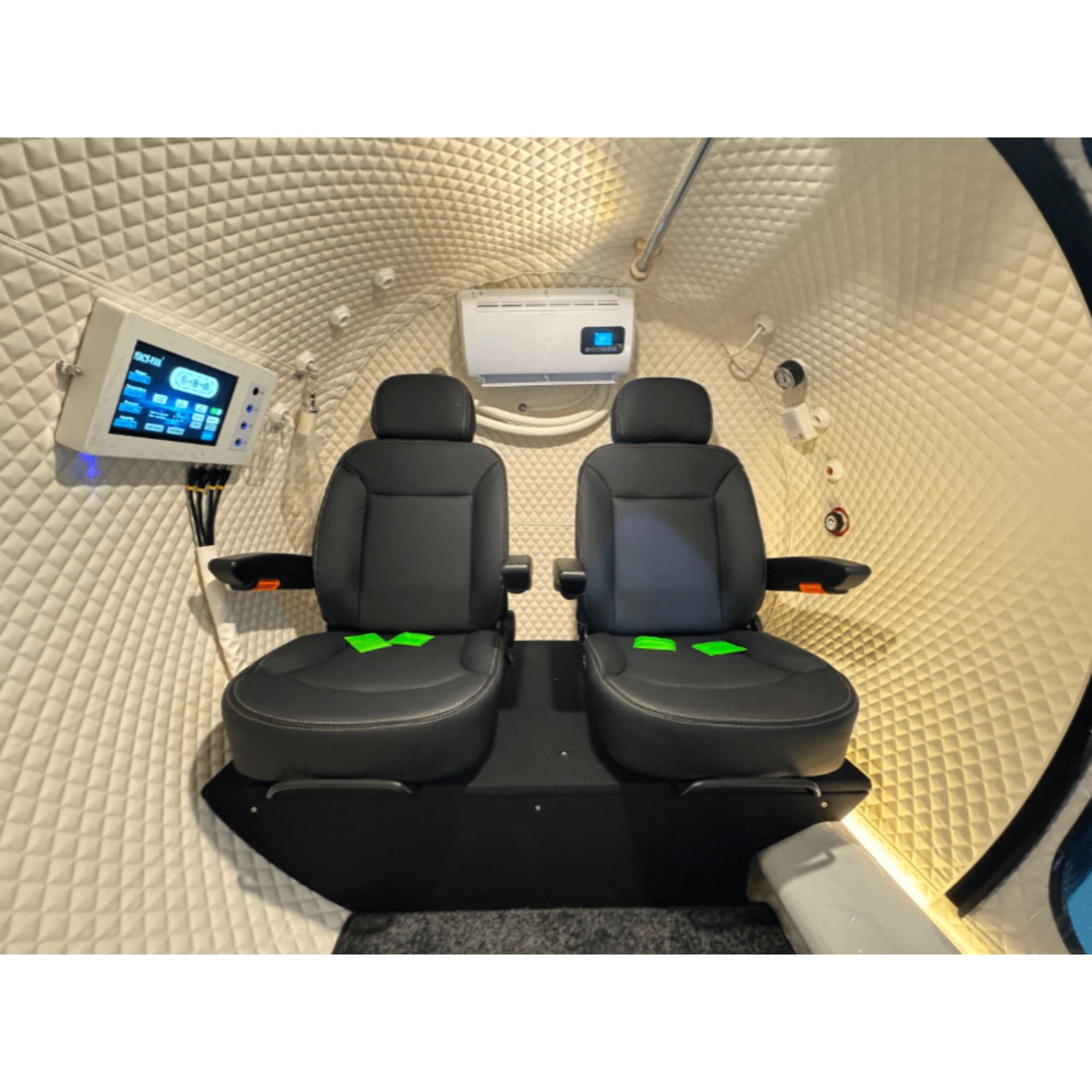

Open sliding doors. Three people enter the 82" x 47" interior—enough room without wasting space. Sit comfortably, put on oxygen headsets, use intercom to communicate outside. System pressurizes to 2.0 ATA while climate control maintains comfort and CO2 removal keeps air safe.
✓ Three-person capacity at lower cost: Share professional-grade 2.0 ATA investment across couples, small families, or multiple wellness centers—more affordable per person than individual chambers

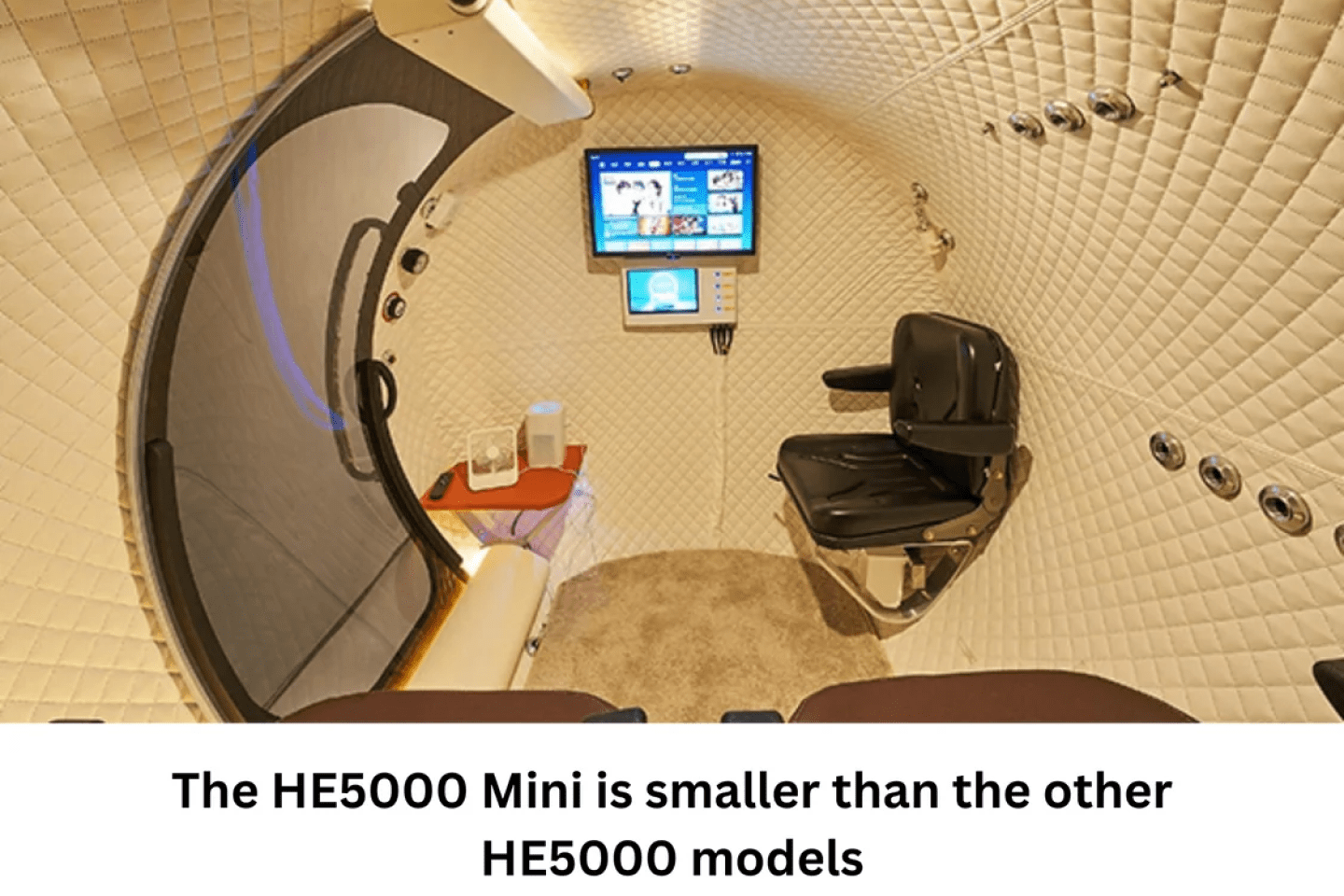

✓ Compact doesn't mean cramped: 82" x 47" x 69" accommodates three adults comfortably—optimized dimensions for small group 2.0 ATA sessions
✓ Intercom eliminates isolation anxiety: Stay connected to outside world during 2.0 ATA sessions—especially important for first-time maximum pressure users
✓ Climate control handles 2.0 ATA intensity: Adjustable air conditioning manages heat and comfort at maximum pressure with three people—essential for extended sessions
✓ Hard shell means permanent quality: Position once as centerpiece of wellness practice or home
Macy Pan Mini HE5000 Hard Hyperbaric Chamber Parts List: What Comes in the Box
Everything you need comes standard with your Mini Macy Pan HE5000 Hyperbaric Chamber!

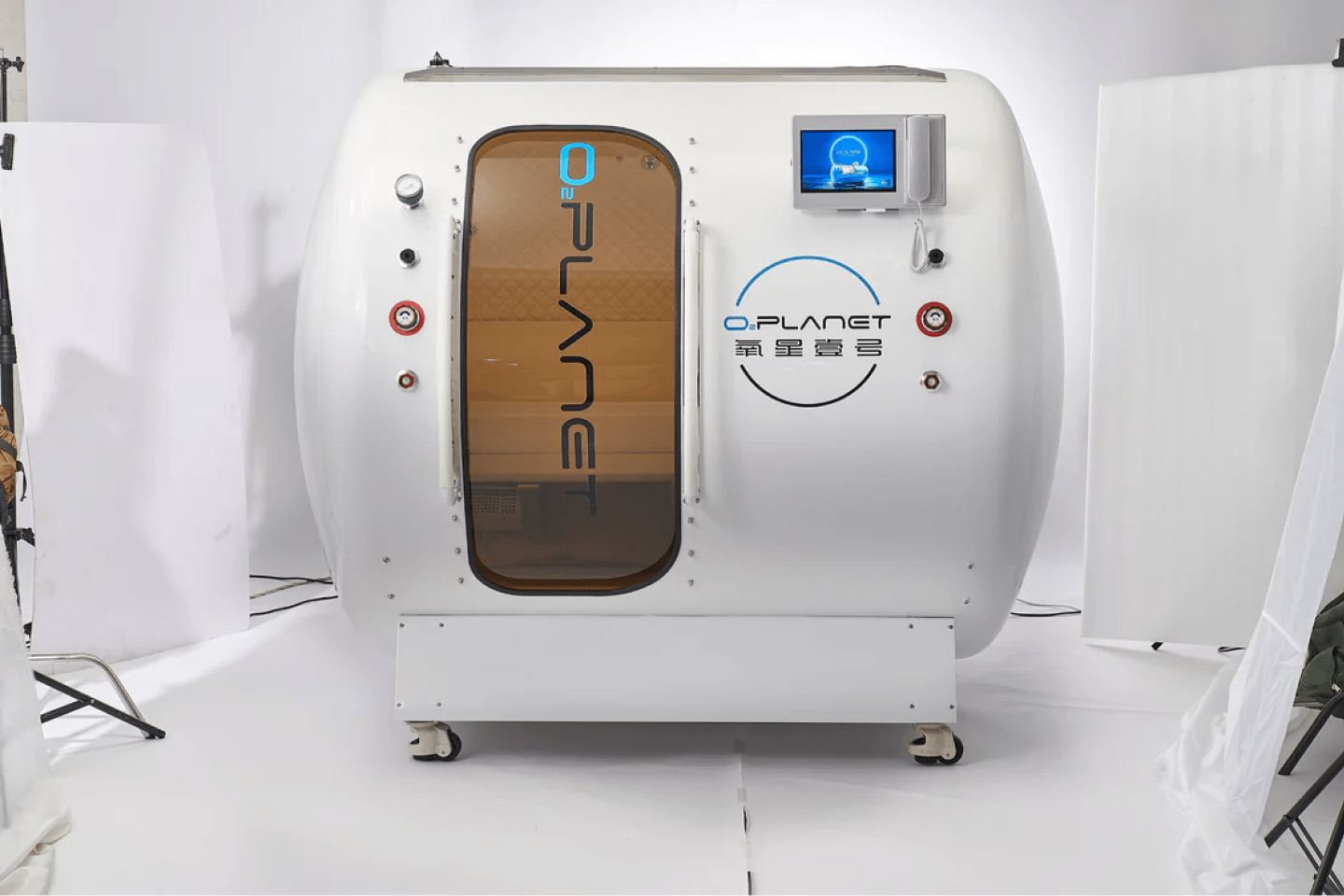

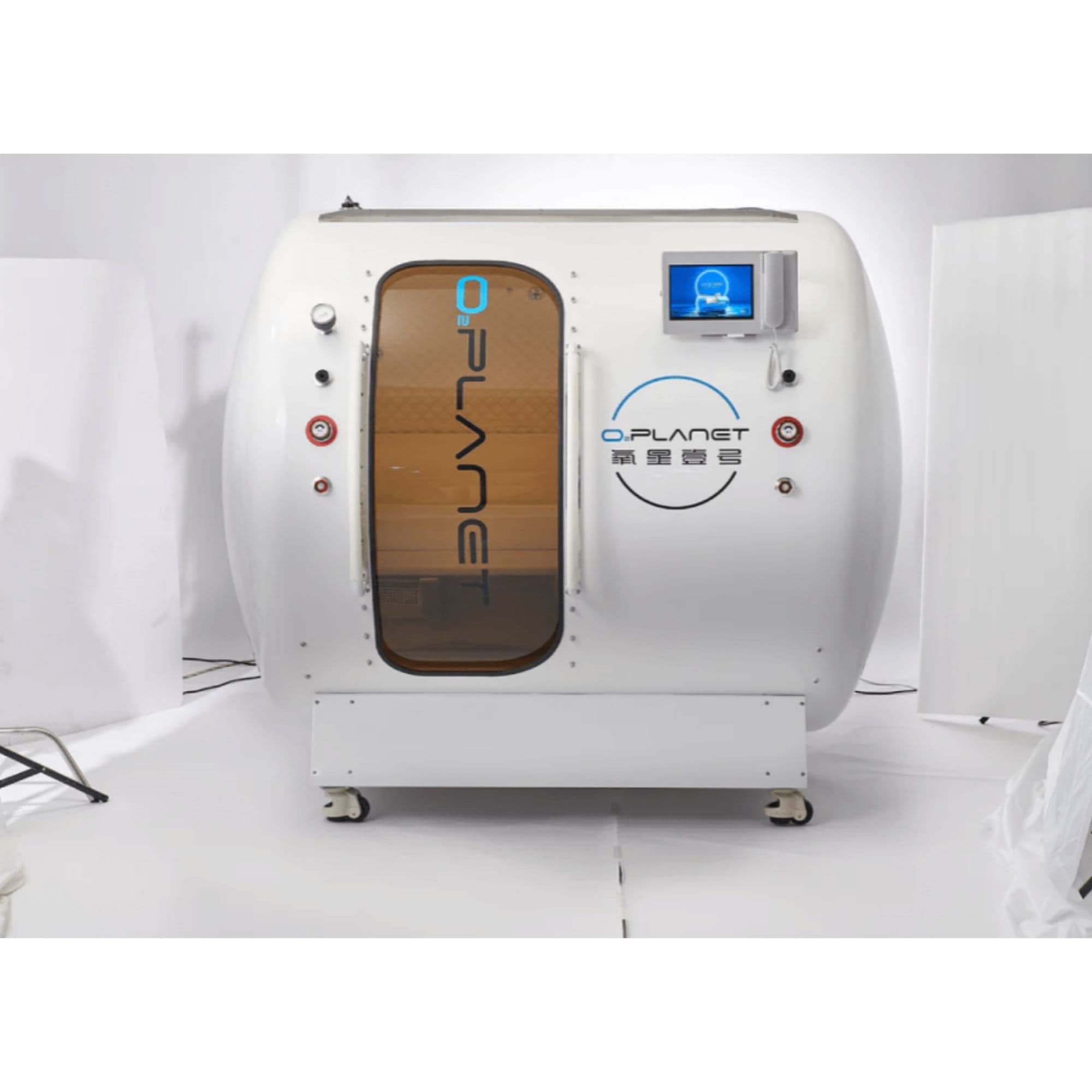

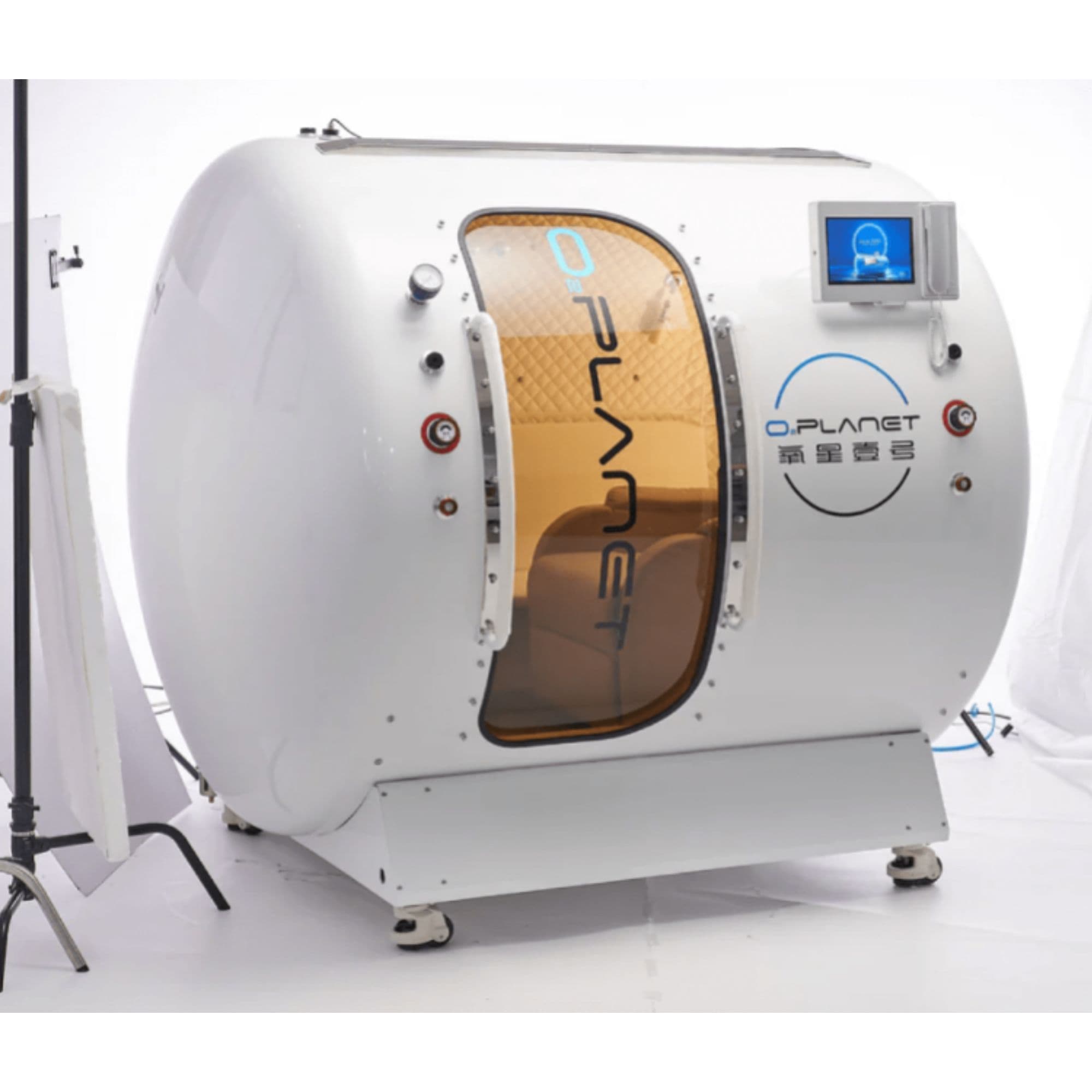

- HE5000 Mini Hard Shell Hyperbaric Chamber (82" x 47" x 69")

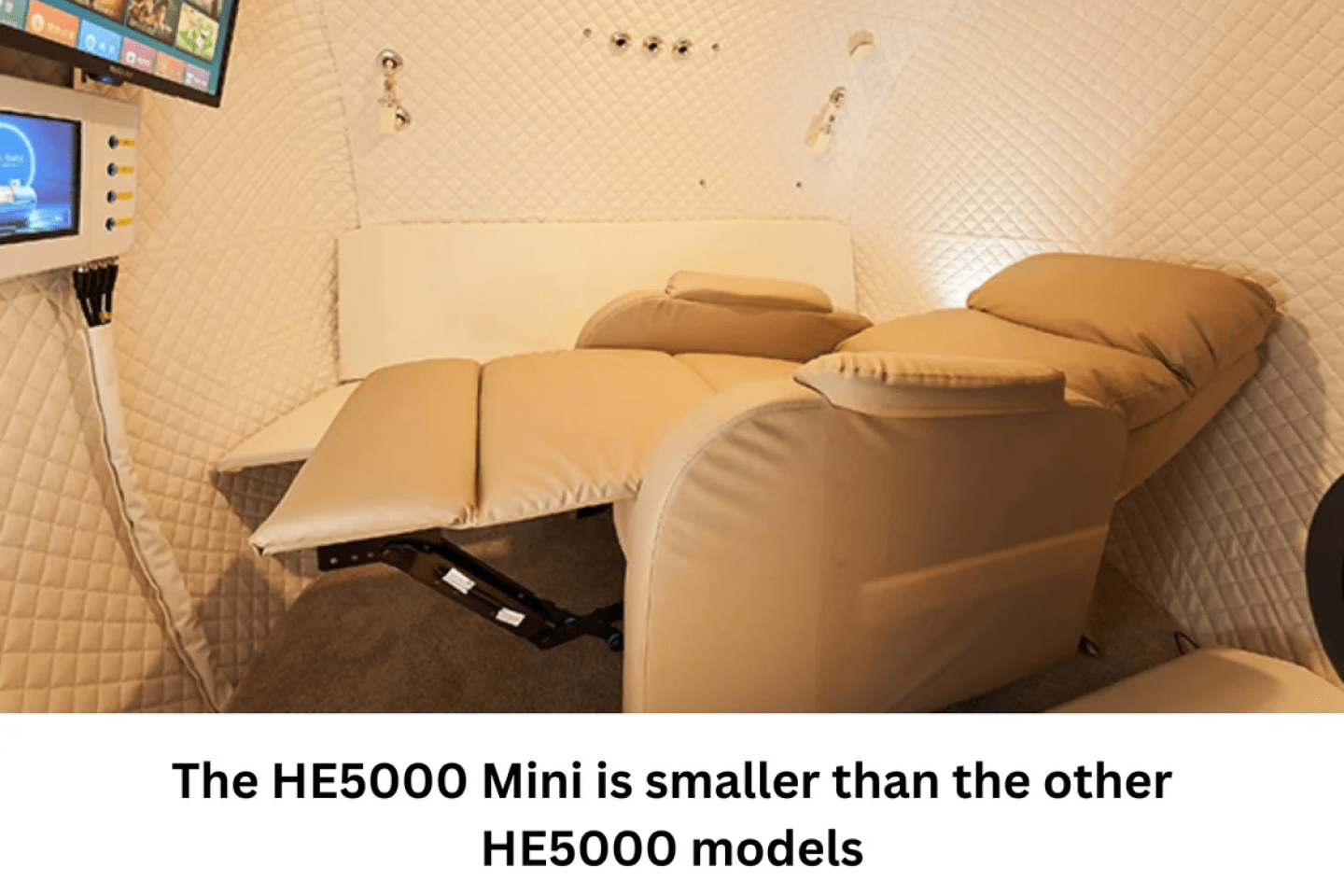

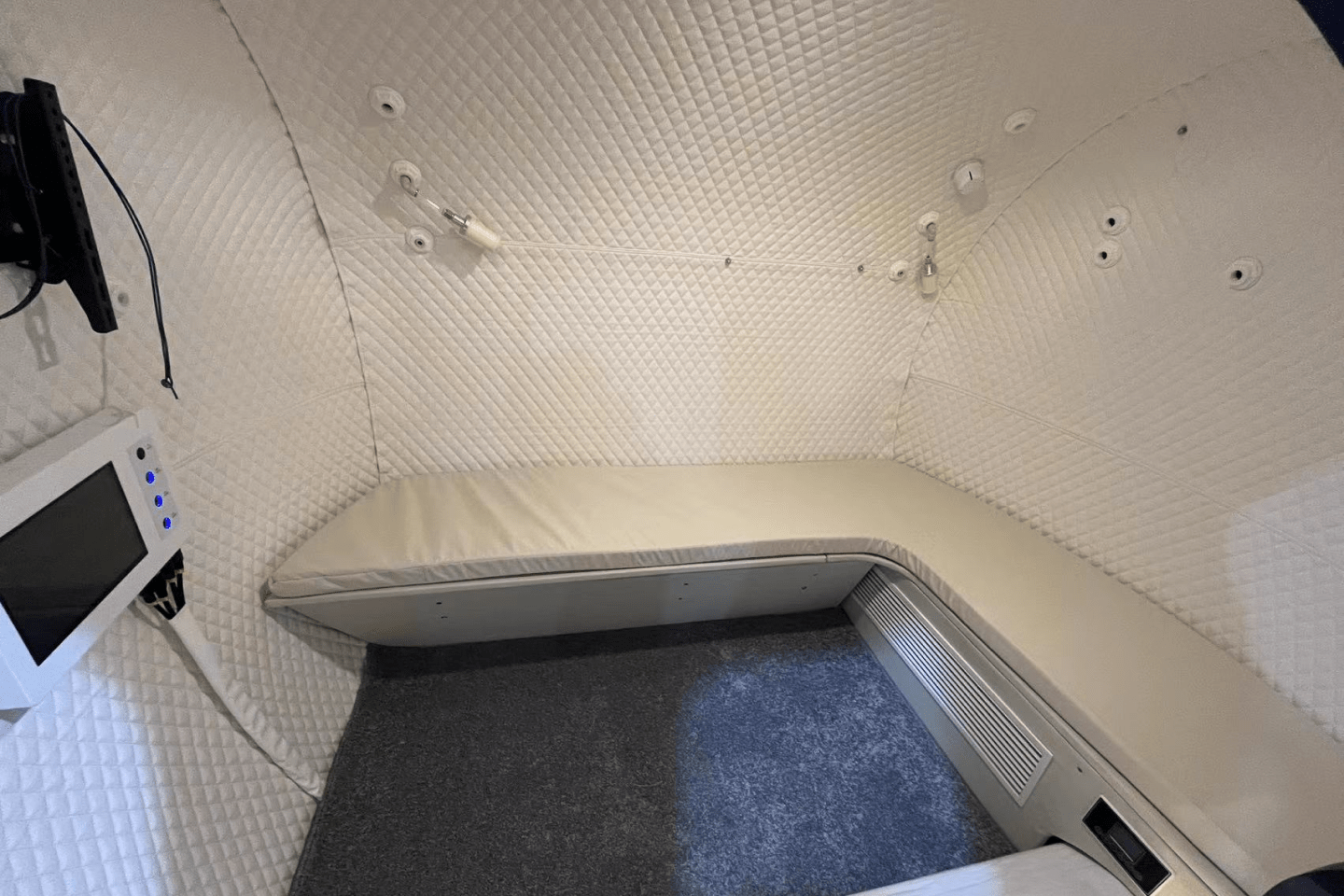

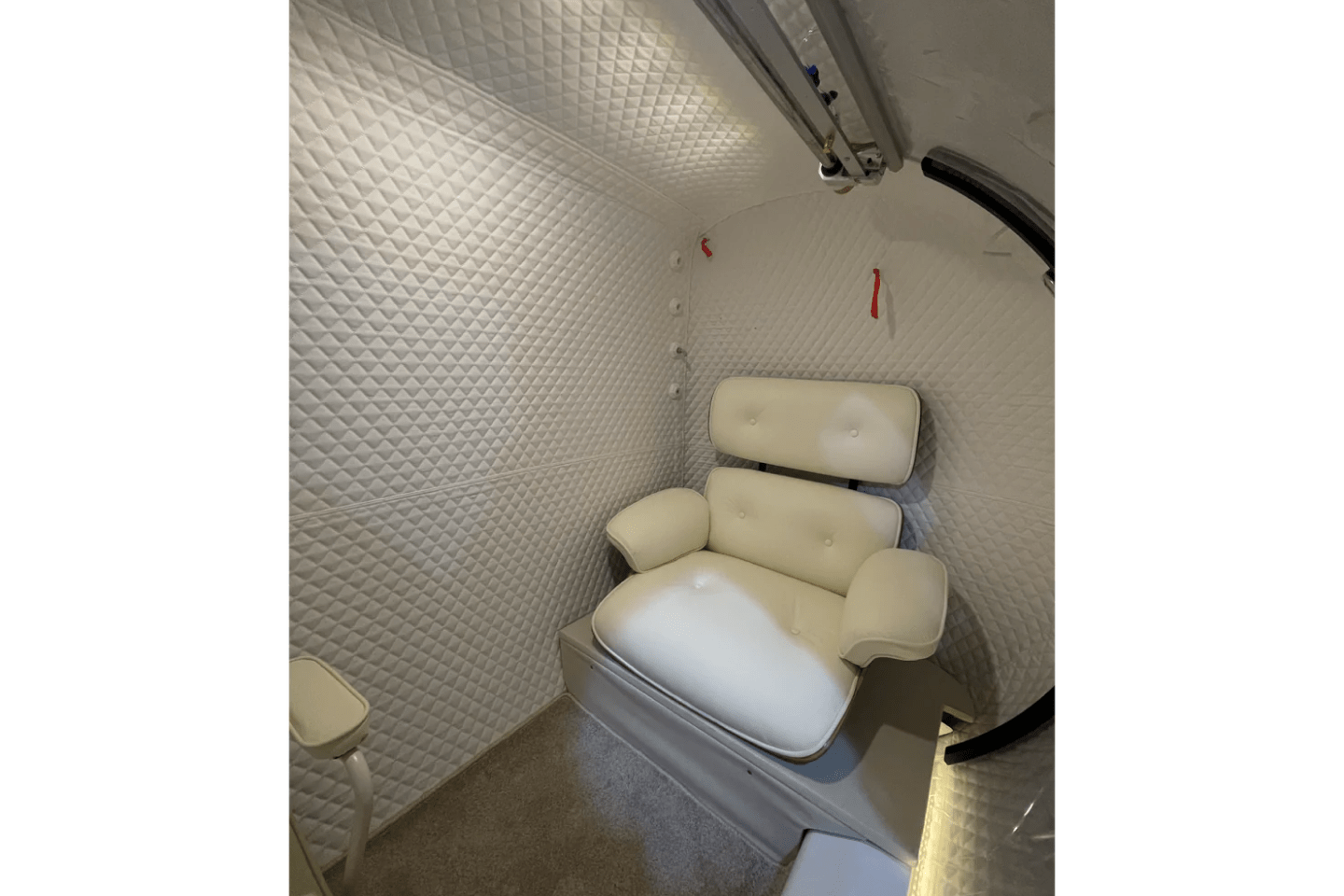

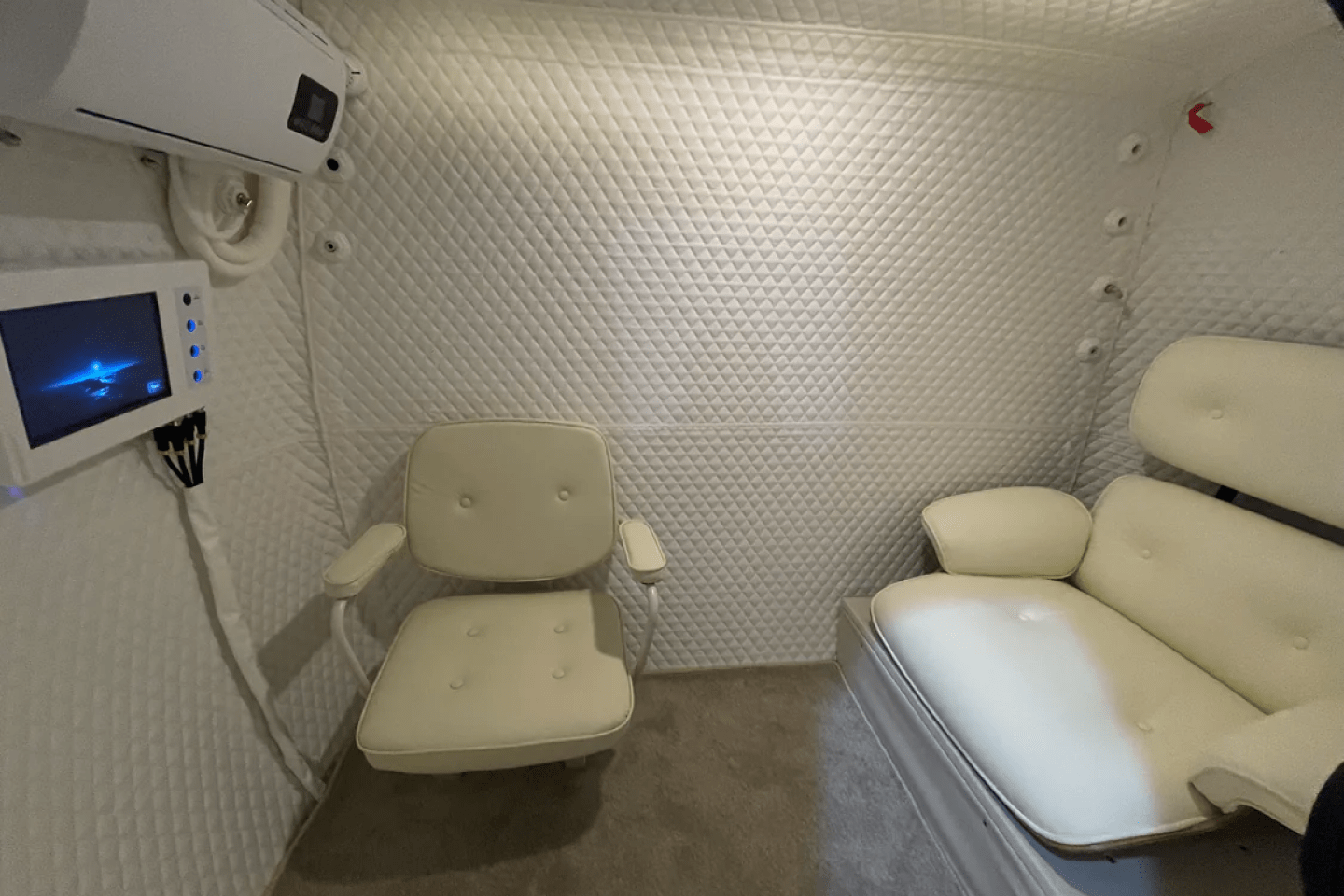

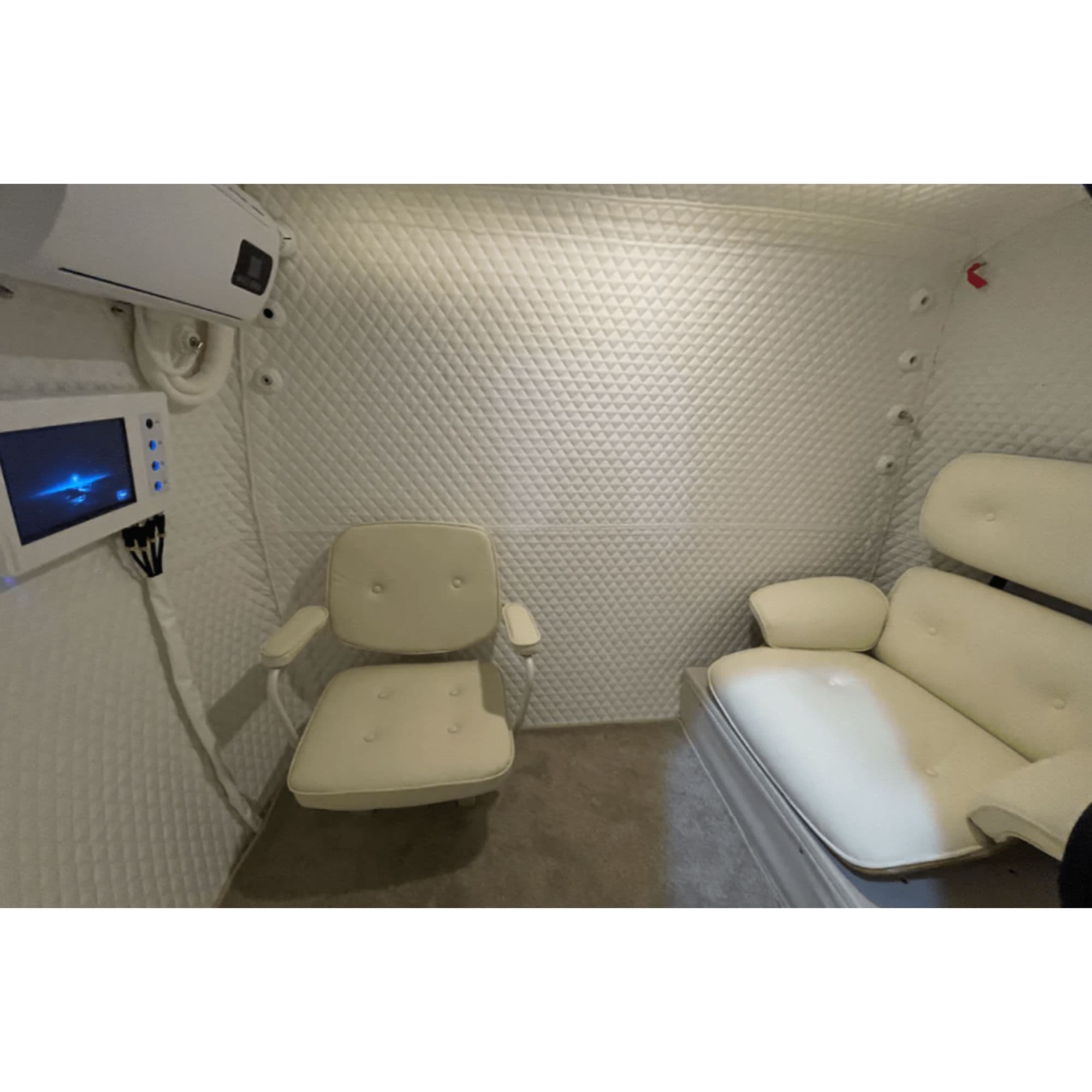

- Internal Seating for Up to 3 People
- (2X) Oxygen Concentrator
- Integrated System Machine - Air compressor & cooler
- Carbon Dioxide Removal Device
- Adjustable Air Conditioning System
- High-Pressure Resistant Window
- Large Sliding Doors (20" x 46")
- Up to 5 Oxygen Headsets (connection capability)
- Internal AND External Pressure Monitoring
- 2-Way Intercom System

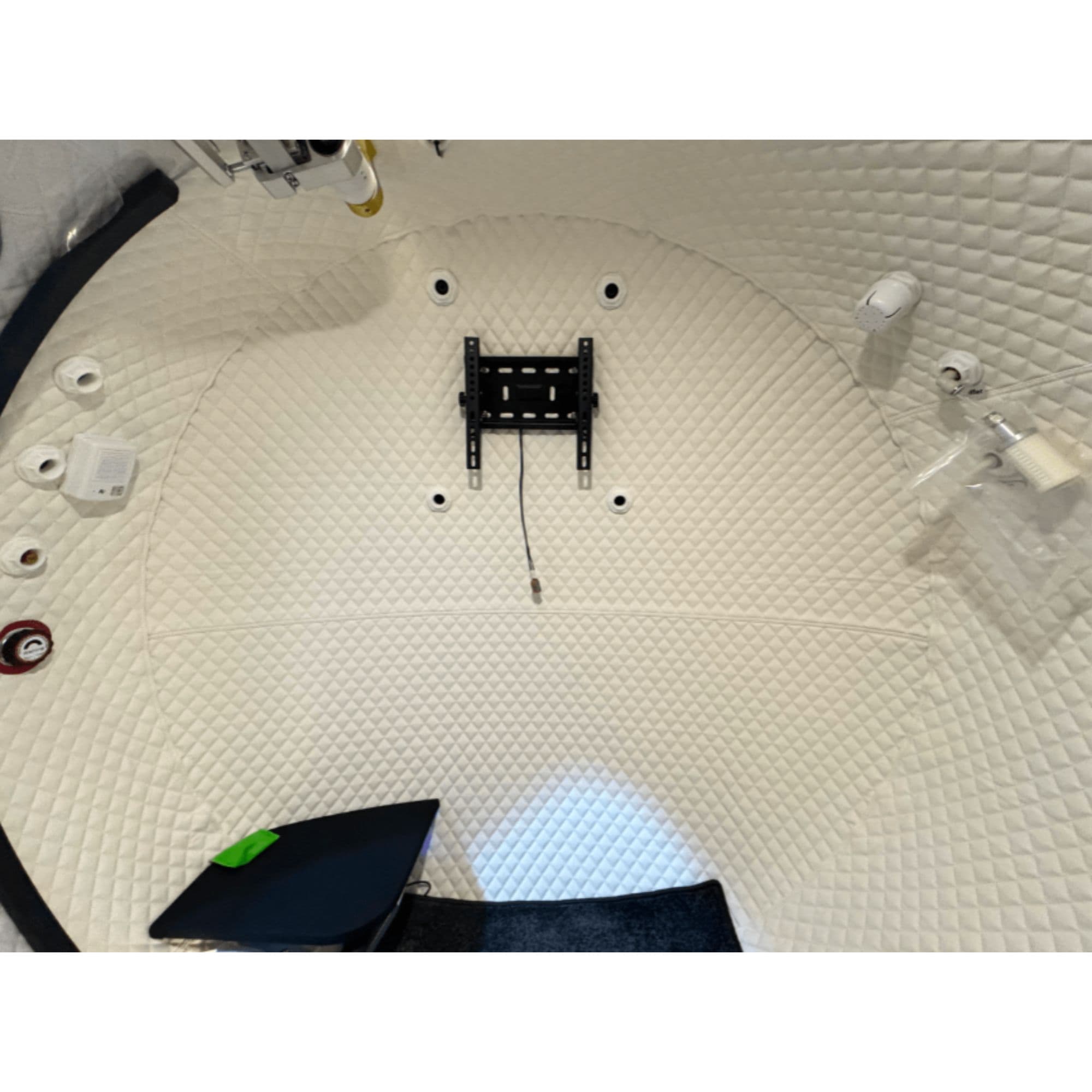

- TV and Bluetooth Stereo Compatibility (installation ready)
- User Manual and Setup Guide
Macy Pan Mini HE5000 Chamber Specifications
| Model | HE5000 |
| Chamber Dimensions | 82" L x 47" W x 69" H (6.83' x 3.92' x 5.75') |
| Operating Pressure | 2.0 ATA fixed (professional-grade) |
| Oxygen Concentration | 93% under pressure |
| Chamber Material | Stainless steel frame, polycarbonate viewing panels |
| User Capacity | 1-3 people simultaneously |
| Position | Seated (accommodates multiple seating configurations) |
| Oxygen Delivery | Up to 5 headsets (headsets connect to system) |
| Oxygen Flow Rate | 20 liters/minute per concentrator (2 units included = 40L total) |
| Chamber Type | Hard shell, multi-person |
| Door Type | Large linear sliding doors (20" x 46") |
| Climate Control | Adjustable air conditioning (airflow and direction) |
| Air Flow Rate | 140 liters/minute |
| System Machine Size | 68" x 14" x 26" (95 kg) |
| Concentrator Size (each) | 18" x 18" x 27" (56 kg each, 2 units included) |
| Power Requirements | 110/220/240 VAC ±10% |
| Weight | 926 lbs (420 kg) |
| Power Consumption | 1,250 W |
| Safety Features | CO2 removal system, pressure-resistant window, pressure monitoring, emergency depressurization |
| Entertainment Options | TV and Bluetooth stereo compatible (installation ready) |
| Certifications | ISO 13485, ISO 9001, CE |
| Suitable For | Families, wellness centers, athletic facilities |
| Communication | 2-way intercom system |
Macy Pan Mini HE5000 Hyperbaric Chamber Specifications
